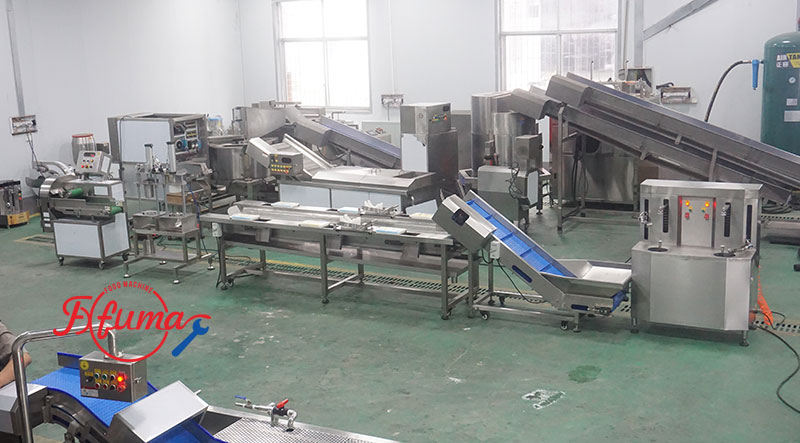

Pineapple Processing Lines in Action: 5 Factory Cases — Mini Pineapple, Fan Slices, Rings & Chunks
Pineapple Processing Line Cases: Vacuum-Packed Mini Pineapple, Fan Slices & Rings
Looking for a pineapple processing line that is proven on the factory floor, not just on paper? This guide walks through four pineapple processing configurations that FUMA Machinery has designed, built, and delivered — from a fully automatic line for vacuum-packed mini pineapple (ready-to-eat export fruit) to dedicated lines for pineapple fan slices and pineapple rings.
Every case below follows the same structure, so you can compare them quickly: final product → process flow → key equipment → who it fits. Each line is built in food-grade stainless steel and can be customized around your fruit size, daily capacity and target market.
At a Glance: Which Pineapple Line Fits Your Factory?
| Our Case | Final product | Automation | Reference capacity | Best for |
1. Mini Pineapple Processing Line
| Vacuum / pillow-packed whole mini pineapple (Thai mini pineapple) | Automatic: peeling → washing → drying → packaging | Configurable around the 6-in-1 peeling output; batch pillow packaging, 3T/ | Ready-to-eat fruit exporters, fresh-cut plants supplying supermarkets & convenience stores |
2. Dried Pineapple Processing Line
| Pineapple fan slices — fresh-cut or dried snack/bakery ingredient | Semi-automatic fresh line (1–1.5 t/h) or customized drying line | Fresh line: 1–1.5 t/h; drying line: peeler 350–450 pcs/h, dehydrator 20–100 kg/batch | Fruit snack makers, dried fruit plants, canneries, central kitchens |
3. Ring Pineapple Line
| Uniform pineapple rings (customized thickness) | Semi-automatic: manual head/tail cutting + pneumatic peeling & coring + ring slicing | 600–720 pcs/h (pneumatic peeler & corer) | Small to medium plants producing canned, frozen or fresh-cut rings |
4. Small-Scale Chunks Pineapple Line
| Pineapple Chunks | Compact, manually operated stations | Startup/pilot scale | Startups, R&D labs, small local businesses testing the market |
5. Large-scale Fan Pineapple Line
| Pineapple Fan Slices | Automatic: dumping → bubble wash → brush spray wash → integrated peeling / head-tail cutting / splitting → conveyor sorting → roller-knife slicing | 1–2 t/h | Large fruit processing plants and canneries producing canned or bagged pineapple slices |

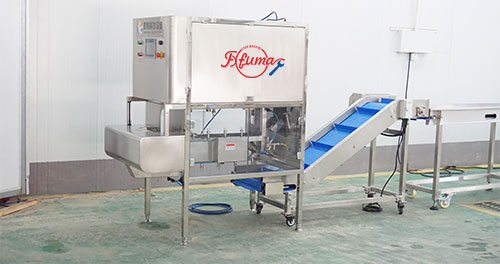

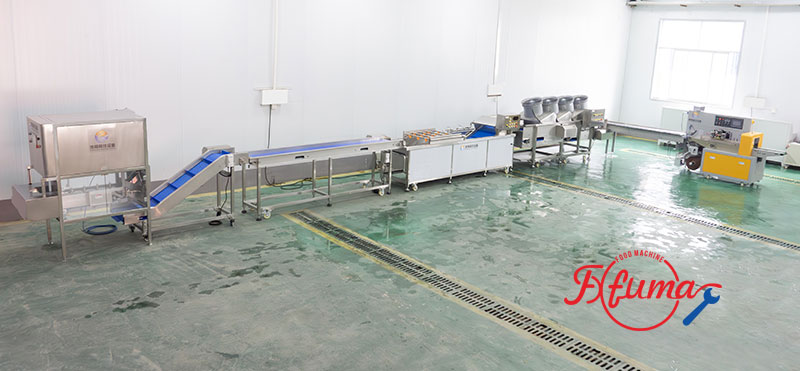

Case 1 · Automatic Mini Pineapple Line — Vacuum-Packed Ready-to-Eat Fruit
Not every buyer starts with a full line. Some want to test a local market, run a pilot for a retail chain, or supply wedges to restaurants and food service before investing in automation. For those projects, we deliver a compact setup on manual workstations:
| Final product | Vacuum / pillow-packed whole mini pineapple, ready to eat |
| Automation level | Fully automatic continuous line |

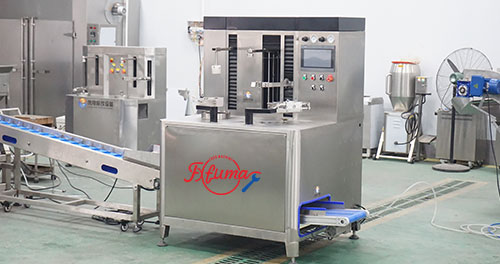

| Key Equipment | Pineapple Peel/End Cutter Machine, Pineapple Bubble Washer, Pineapple Air Dryer Machine, Manual Trimming Table, Pineapple Packing Machine |

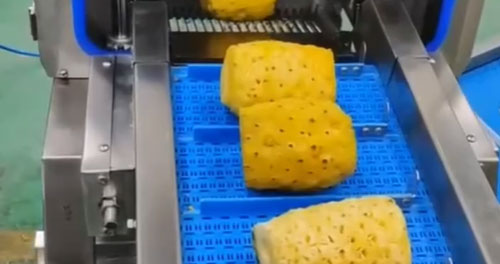

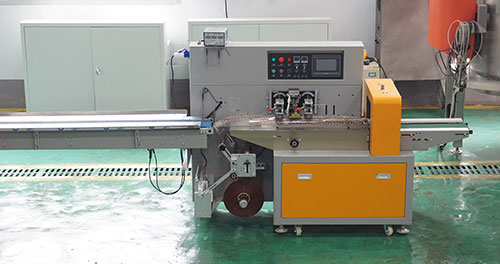

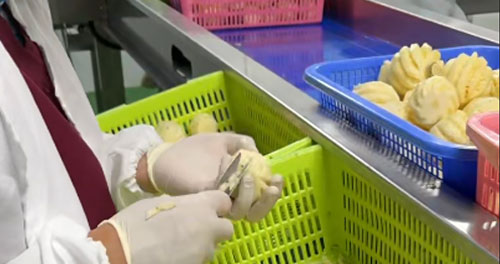

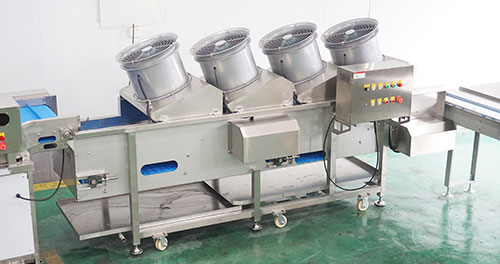

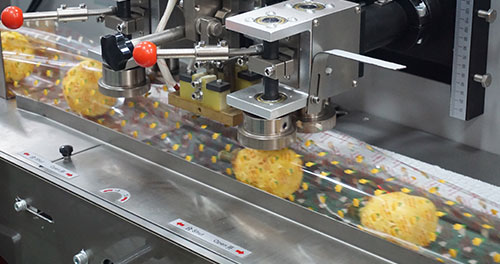

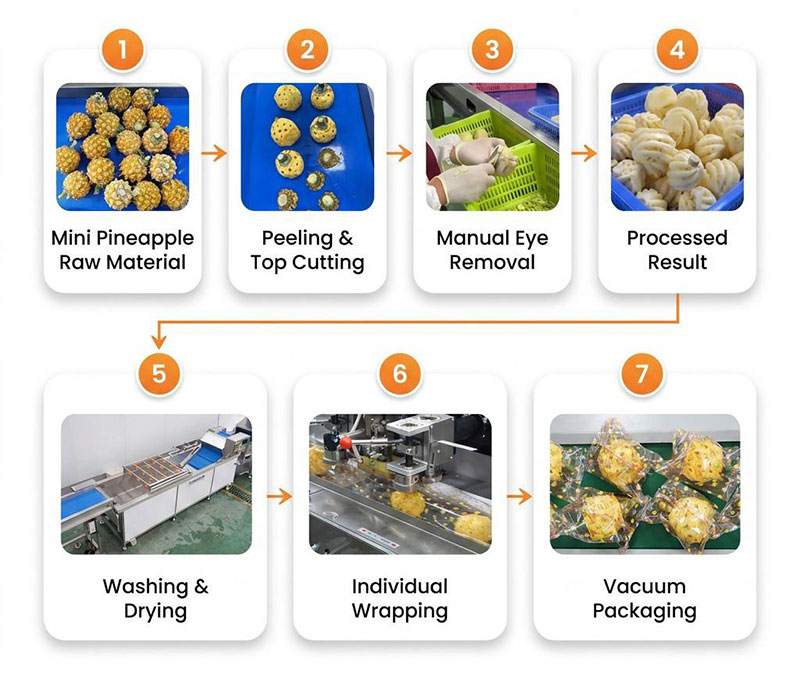

| Process flow | Peeling & end trimming → manual eye inspection / removal → bubble washing → fan air drying → one-by-one pillow-type packaging |
| Typical users | Fruit exporters, fresh-cut fruit plants, wholesale suppliers to supermarkets, hotels and convenience stores |
| Line detail | Ready-to-Eat Pineapple Process Line — Peeling, End-Cutting, Washing & Packaging |
Processing Flow:

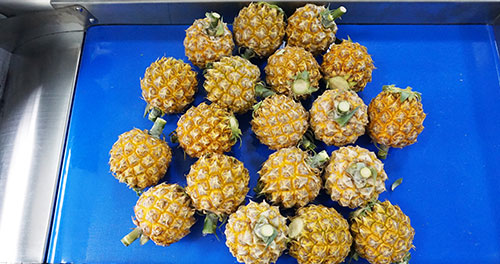

This delivered line was engineered around Thai mini pineapple, the variety most commonly exported as whole, individually packed ready-to-eat fruit. In the delivered configuration, fruit first passes a six-in-one peeling station that combines peeling, top/end trimming, coring, segmenting, and color protection in a single pass — then a short manual sorting step removes remaining eyes, and the fruit is bubble-washed, dried with room-temperature air, and packed one by one.

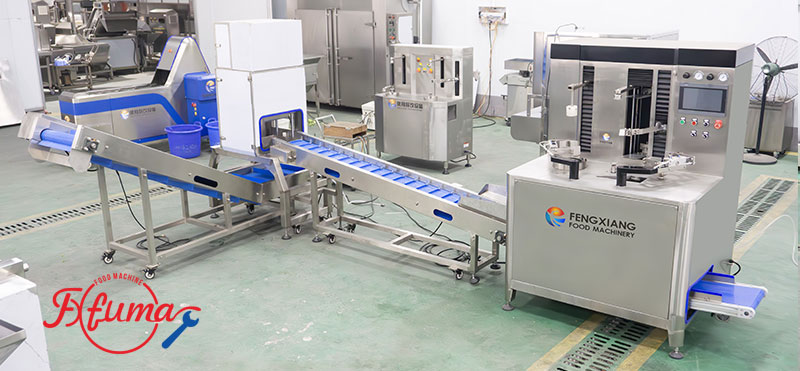

Case 2 · Dried Pineapple Fan Slice Line — Uniform Fresh-Cut or Dried Snack Output

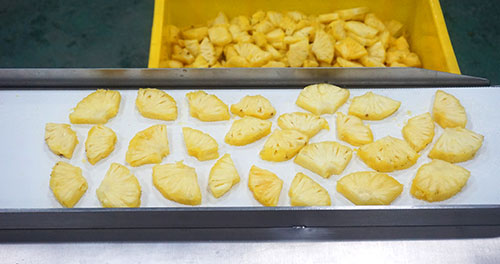

Fan slices (fan-shaped pineapple slices cut from cored, wedged fruit) are one of the most versatile pineapple products: they sell fresh in fruit cups and salads, and are the classic base for dried pineapple snacks and baking ingredients. Two delivered configurations cover both directions.
| Final product | Uniform pineapple fan slices — fresh-cut or dried pineapple snacks |
| Configuration A — fresh-cut line | Semi-automatic, 1–1.5 t/h, food-grade 304 stainless steel: feeding → peeling, head/tail cutting, coring & splitting → slicing → drying |
| Configuration B — dried fan line | Customized drying line: peeling (350–450 pcs/h) → head/tail cutting → coring & wedging (360–400 pcs/h) → slicing → dehydration (20–100 kg/batch) |
| Key Machines | Pineapple Dual Head Peeler, Pineapple Manual Sorting Table, Pineapple Coring and Wedging Machine, Pineapple Slicing Machine |
| Typical users | Dried fruit & snack manufacturers, canneries, central kitchens, fruit suppliers |
| Line detail | Customized Dried Pineapple Processing Line |

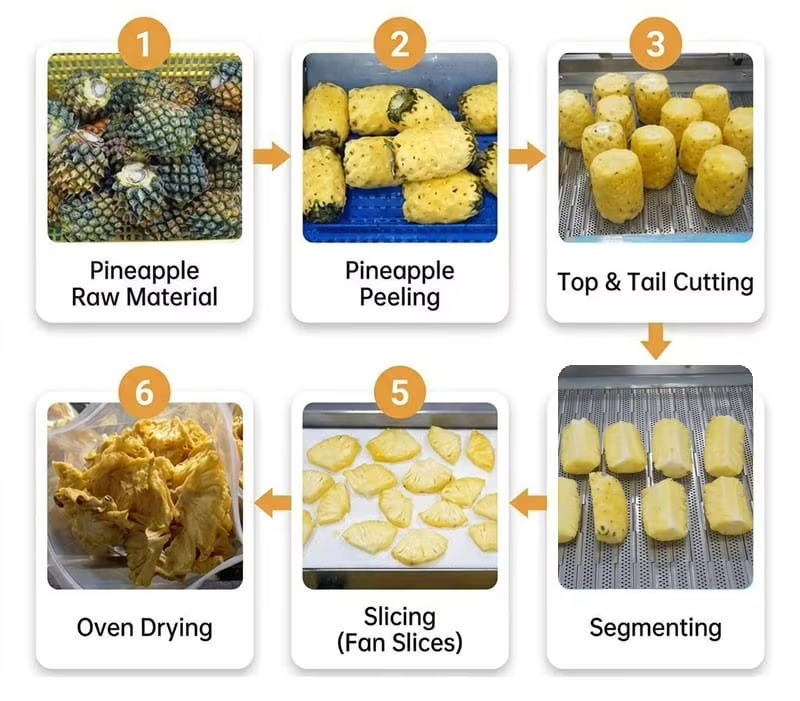

Process Step by Step (Dried Snack Configuration):

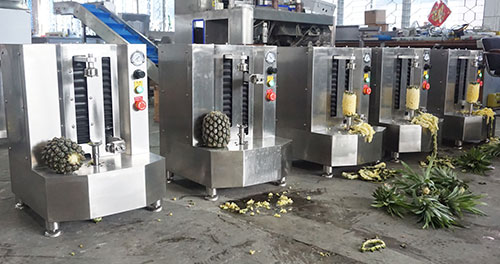

1. Two-head pineapple peeling — 350–450 pcs/h with clean, low-waste skin removal.

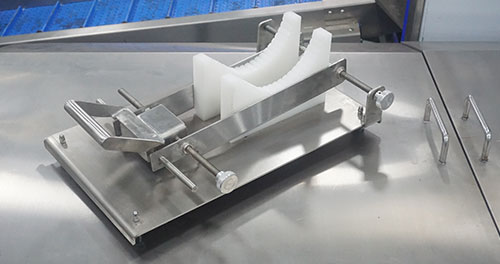

2. Head & tail cutting — manual station trimming both ends before coring.
3. Coring & wedging — 360–400 pcs/h, removing the core and dividing the fruit into wedges ready for slicing.
4. Fan slicing — uniform thickness is the critical factor for even dehydration.

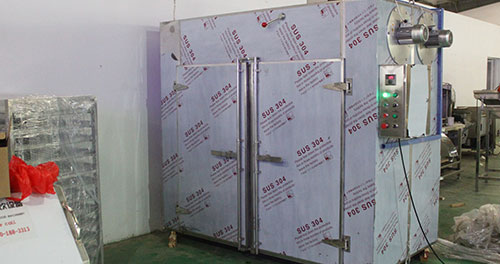

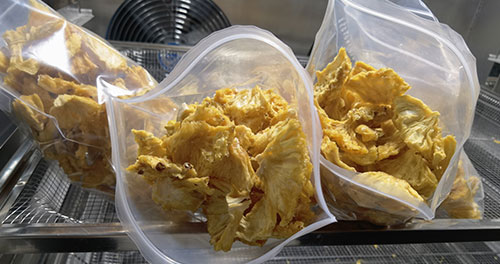

5. Dehydration — 20–100 kg per batch; stable drying preserves color and taste for snack-grade product.

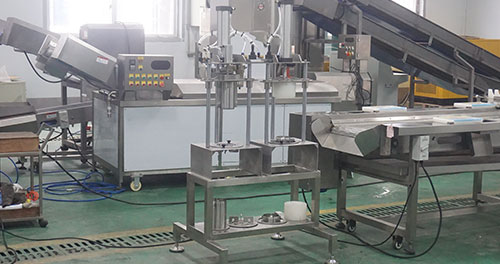

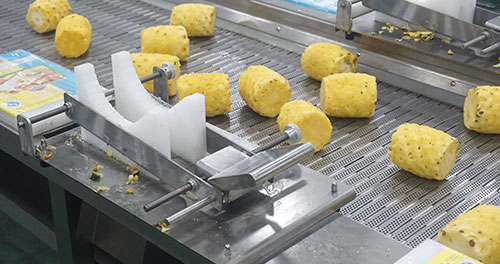

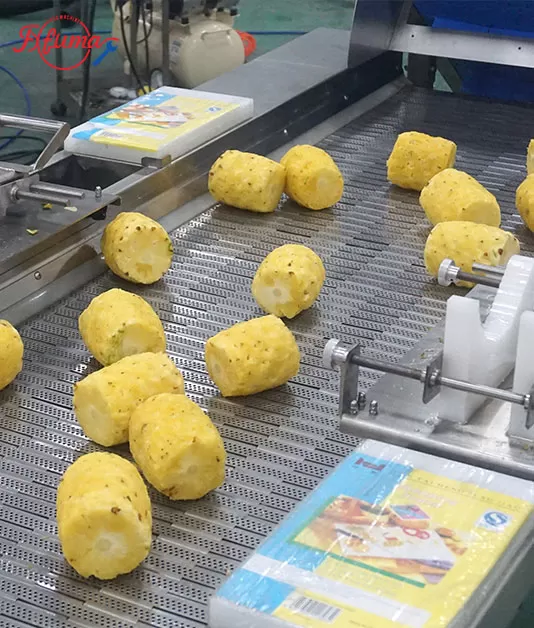

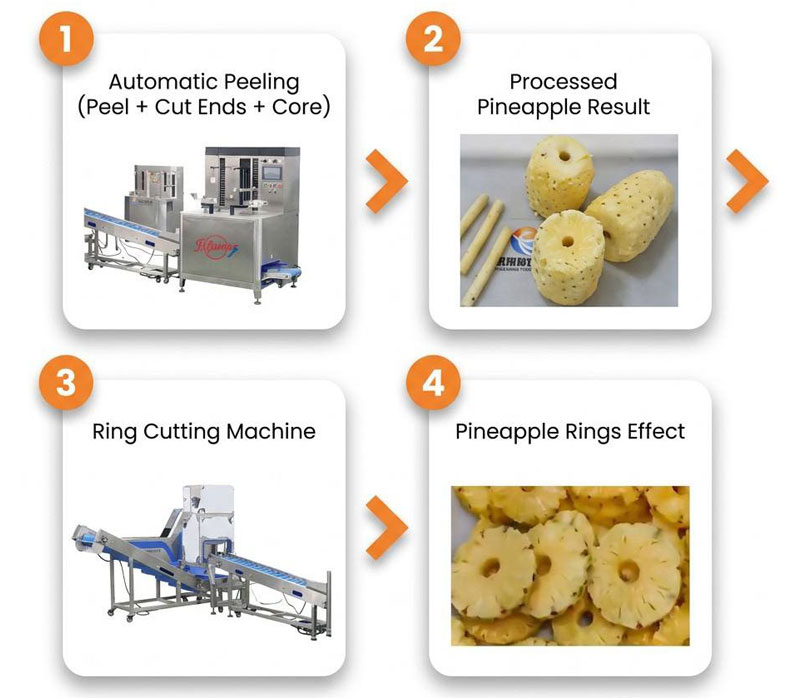

Case 3 · Semi-Automatic Pineapple Ring Line
Pineapple rings are a staple of the canning and frozen-fruit industries, and buyers judge them on two things: uniform thickness and clean-cut edges. This delivered semi-automatic line achieves both without the cost of full automation, which makes it a practical choice for small and medium plants.
| Final product | Uniform pineapple rings, adjustable thickness — for canned, frozen or fresh-cut product |
| Automation level | Semi-automatic: each step is operator-controlled but mechanically assisted |
| Process flow | Head & tail cutting → pneumatic peeling & coring → manual ring slicing → optional downstream washing / canning / freezing |

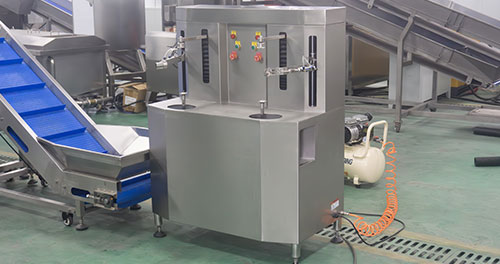

| Reference capacity | 600–720 pcs/h (pneumatic peeler & corer) |
| Key Machines | Pineapple peeling, coring, end cutting, and wedging machine |
| Typical users | Small to medium pineapple processing plants, cannery feeders, frozen fruit producers |
| Line detail | Semi-Automatic Pineapple Processing Line for Pineapple Rings |
Process Flow:

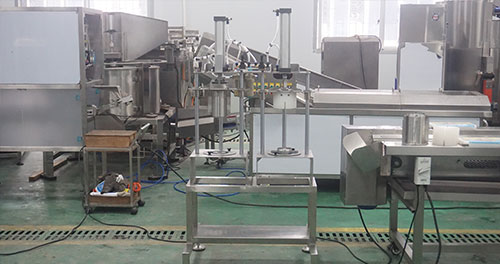

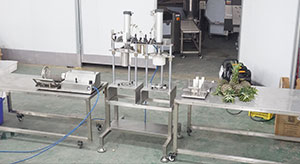

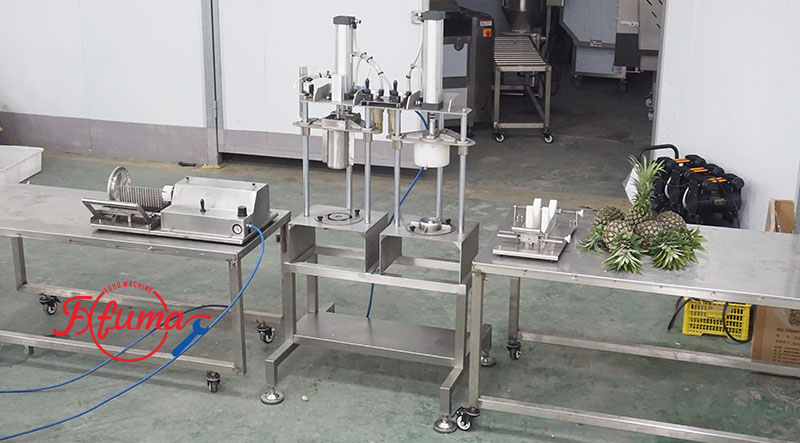

Case 4 · Small Scale Compact Pineapple Chunks Setup — Pilot & Startup Friendly
Not every buyer starts with a full line, and not every plant has floor space to spare. This compact semi-automatic setup produces small batches of pineapple chunks — rings are cut first and then stamped into fan-shaped pieces — on a footprint of just a few workstations. It is a low-investment entry into pineapple processing for small and medium plants, startups and R&D teams.
| Final product | Fan-shaped pineapple chunks (rings cut and stamped into pieces) — small-batch, for fruit salads, cups and fresh-cut retail |
| Automation level | Semi-automatic: pneumatic stamping for peeling, coring and fan-piece forming; operator-assisted feeding and cutting |

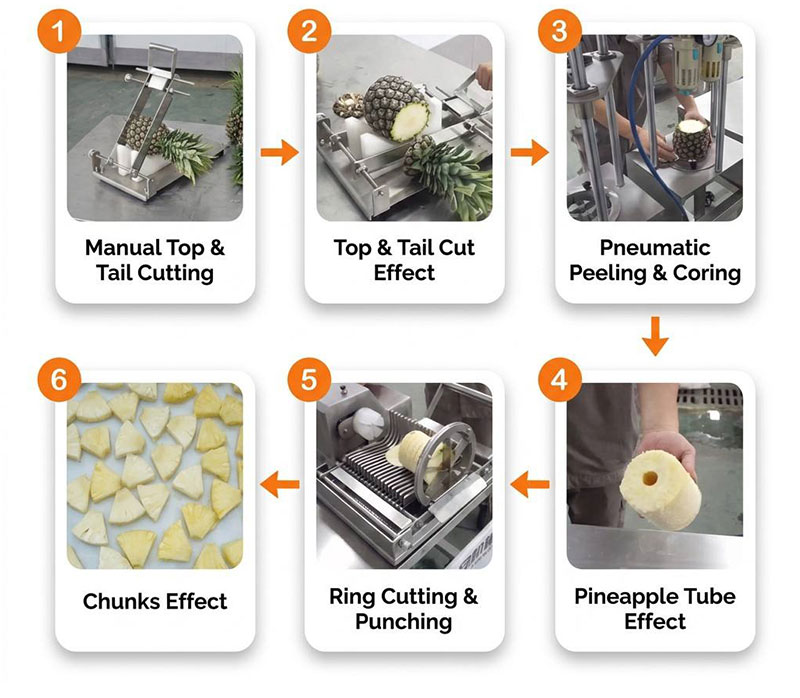

| Process flow | Manual head & tail cutting → pneumatic stamping peel & core removal → ring cutting → pneumatic stamping of rings into fan-shaped chunks |
| Reference capacity | 100–300 kg/h |
| Key equipment | Manual pineapple head & tail cutter · pneumatic stamping pineapple peeler & corer · pineapple ring cutting & fan-piece stamping machine (cuts rings first, then stamps each ring into fan-shaped pieces) |
| Typical users | Small to medium plants, startups, R&D labs and food-service suppliers |
| Related machines | 2-in-1 pneumatic pineapple peeling & coring machine — the same head/tail cutter and pneumatic peeler stations are also used in the semi-automatic chunks line (Case 4) |
Process Flow:

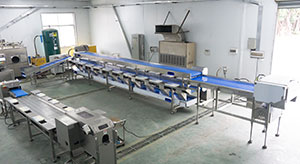

Case 5 · Industrial Pineapple Fan-Slice Line, 1–2 T/H — Cannery & Bagged-Slice Production
For large fruit processing plants, this is our reference 1–2 t/h pineapple fan-slice line. It is a complete washing-and-cutting line rather than a single machine: raw pineapples are dumped into the line, cleaned in two washing stages, peeled, end-trimmed, and split in one combined machine, inspected on a moving conveyor and finally cut into uniform fan slices that feed canning lines, bagged pineapple slice packaging or frozen product lines.
| Final product | Uniform pineapple fan slices — for canned pineapple, bagged pineapple slices (fresh, frozen or retail bags) |
| Automation level | Fully automatic washing and cutting line with an inline manual sorting checkpoint |

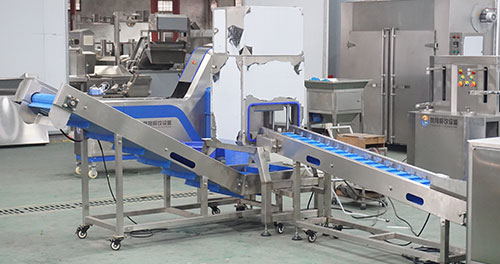

| Line architecture | Dumping & feeding → bubble washing → brush spray washing → integrated peeling / head-tail cutting / splitting → three-tier conveyor with center manual sorting station → roller-knife (rotary) slicing |
| Reference capacity | 1–2 t/h |
| Key Machines | 4-in-1 Pineapple Peeling, Coring, End Trimming, and Cutting Machine, 3-Layer Conveyor Belt, Pineapple Roller Chunks Slicer Machine |
| Material | Food-grade 304 stainless steel |
| Typical users | Large fruit processing plants, canneries, exporters of canned or bagged pineapple slices |

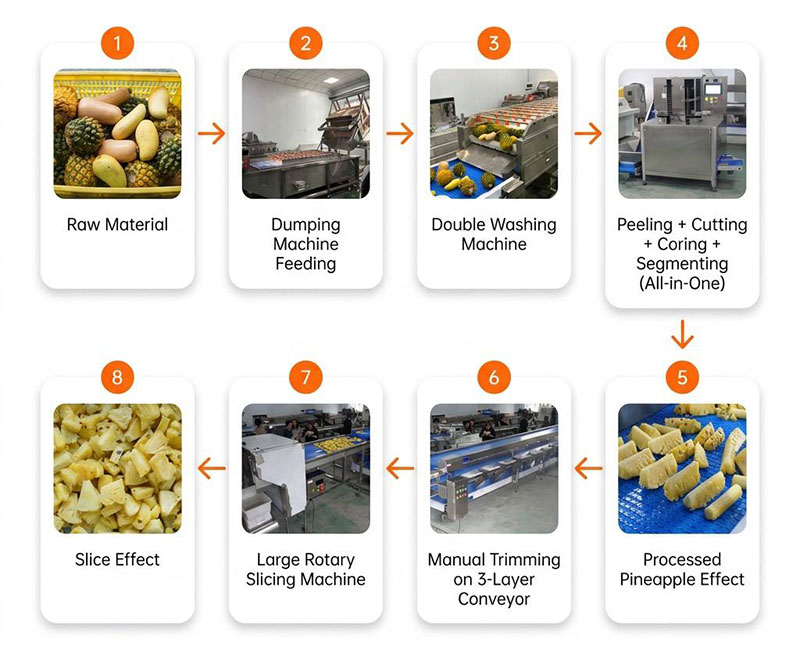

Process Step by Step:
1. Dumping & feeding — bulk pineapples are tipped into the feeding hopper and conveyed steadily into the line, replacing heavy manual loading and preventing fruit damage.

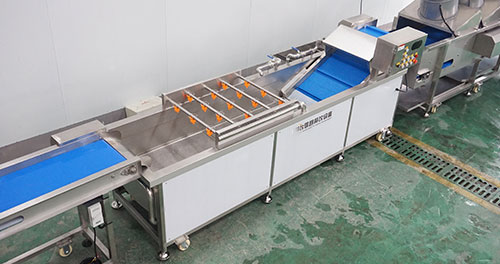

2. Bubble washing — the first wash loosens and lifts surface dirt and sediment with evenly distributed bubbles, without bruising the flesh.
3. Brush spray washing — rotating brushes combined with water spray scrub the fruit surface and eye areas clean — the second-stage wash that cannery-grade product needs before any cutting.
4. Integrated peeling, head & tail cutting & splitting — one machine peels the rind, trims both ends, and splits the fruit into fan-ready segments in a single pass, cutting labor and line length compared with separate stations.

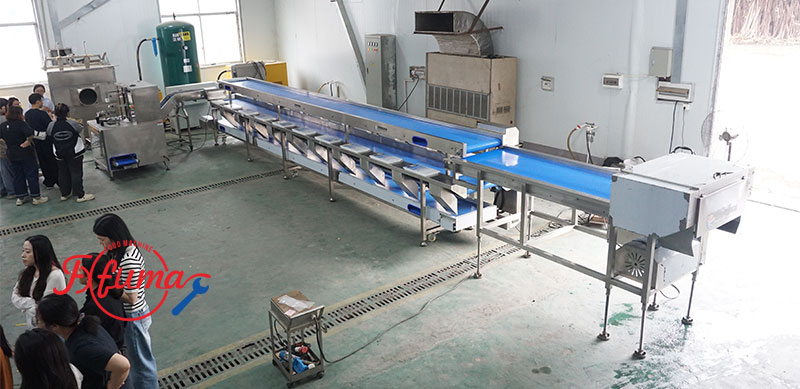

5. Three-tier conveyor with center sorting station — fruit travels on the upper belt while operators on the center platform inspect and remove imperfect pieces (remaining eyes, blemished flesh); the lower tier carries rejects away, so quality control never stops the line.

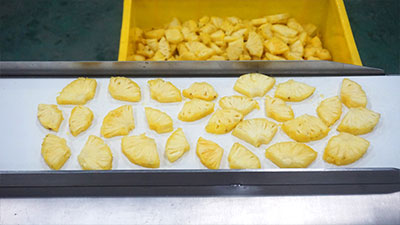

6. Roller-knife (rotary) slicing — fan segments are cut into uniform thin slices with adjustable thickness, at a rate that sustains 1–2 t/h output.
Pineapple Processing Line — FAQ
● What products can a pineapple processing line make?
With different configurations, the same raw fruit can become vacuum-packed whole mini pineapple, fan slices, rings, wedges, chunks, dried pineapple slices, or pre-cut fruit for canning, freezing and juice lines. See the selection table above to match product to configuration.
● What is the capacity of a pineapple processing line?
It depends on the configuration: the semi-automatic ring line peels and cores 600–720 pineapples per hour; the two-head peeler on the drying line runs 350–450 pcs/h; the fully automatic fresh-cut fan line is rated 1–1.5 t/h. Lines can be scaled up or down around these modules.
● Can I customize the line for my pineapple size?
Yes. Fruit diameter and variety change the tooling and machine adjustments. We have delivered fruit-specific configurations such as the Thai mini pineapple line (whole mini fruit with pillow packaging), plus machines adapted to large fruit and to mango or papaya.
● What material are the pineapple processing machines made of?
The lines are built from food-grade 304 stainless steel in product-contact areas, which is required for canned, frozen and ready-to-eat fruit processing environments.
● Can one line produce more than one cut shape?
Yes. Coring and wedging machines feed different cutting stations, so a line can switch between fan slices, rings and chunks by changing the cutting tool — a common reason customers choose the modular configurations above.
● Where is FUMA Machinery and do you support export projects?
FUMA Machinery is based in Zhaoqing, China, with 21 years of experience in prepared food processing equipment. Our machines have been exported to 80+ countries and served more than 3,000 food enterprises, with pre-sales consultation, custom design, after-sales support and operator training included in the project service.
Customer Scenario: From Manual Stations to a Washing-to-Cutting Line (Malaysia)
Scenario based on typical project inquiries from pineapple processors in Southeast Asia — company details and figures are illustrative.
A mid-size pineapple processor in Johor, Malaysia was at a turning point. The company had grown for years on manual peeling and slicing stations, supplying the local market. Then two things changed at once: it secured export orders for canned pineapple fan slices destined for supermarket shelves, and local demand kept climbing from supermarket fresh-cut counters and fruit-tea and dessert chains that wanted consistent, ready-to-use pineapple.
The bottleneck was not the fruit — it was people. Labour in the region is affordable on paper, but hard to recruit and quick to leave. Seasonal peaks meant the owner never knew whether the next shift would actually show up, and every training cycle cost both time and yield. Expanding capacity with more manual stations would have multiplied the same headache. What the factory actually needed was a line that could run from washing to cutting with a small, stable crew.
That is the inquiry we receive most often from this profile: "We process about {12–15} tonnes of pineapple a day and want uniform fan slices — part for canning and export, part for supermarket and food-service retail. Labour is cheap but unreliable; how do we cut our dependence on it?"
Our engineers responded with a 1–2 t/h automatic washing-to-cutting line:
● Dumping & feeding replaces hand-carrying of fruit bins into the line.
● Bubble washing, then brush spray washing give the two-stage clean that canned product requires before cutting.
● The integrated peeling, head/tail cutting & splitting machine does the three most labour-heavy steps in one pass.
● A three-tier conveyor with a centre sorting station keeps just 2–3 operators on quality control instead of a peeling crew — the only manual step left is inspection, not production.
● The roller-knife slicer delivers uniform fan slices with adjustable thickness, ready for the canning filler or bagging line.
The result for this type of project: the same daily volume with roughly a quarter of the previous staffing, stable slice quality shift after shift, and a line that scales with the next export contract instead of the next hiring round.
If your factory faces the same wall — good demand, hard-to-keep labour, and a capacity target to hit — send us three numbers: your pineapple size, your daily tonnage, and the final product. We will reply with a line layout, staff requirements, and quotation.
 |  |  |
