Peeler
Dimensions: L4700 × W1760 × H2050 mm
Total Power: 3.85 kW
Processing Diameter: 70 mm - 115 mm
Processing Length: 75 mm - 150 mm
Processing Speed: 1,200 pcs/h
Cutting Thickness: Adjustable
Specifications: 325 g - 1,250 g
Functions: Peeling, Head Tail Cutting, Spot Removing
Service: 24/7 Technical Inquiry; Ample Spare Parts Supply; Engineering & Technical Services, etc.

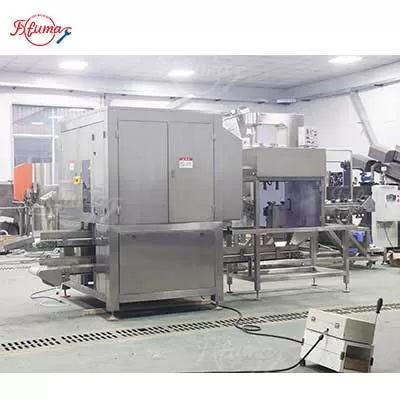

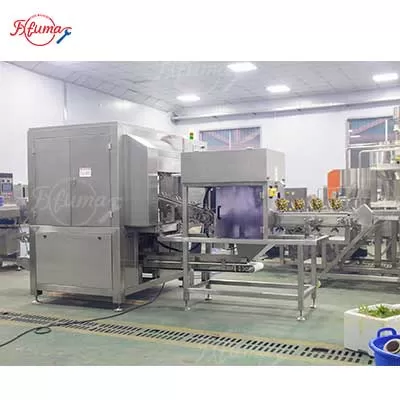

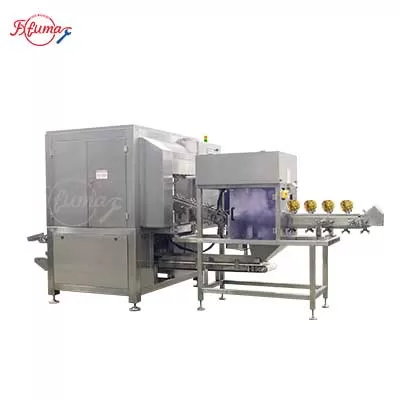

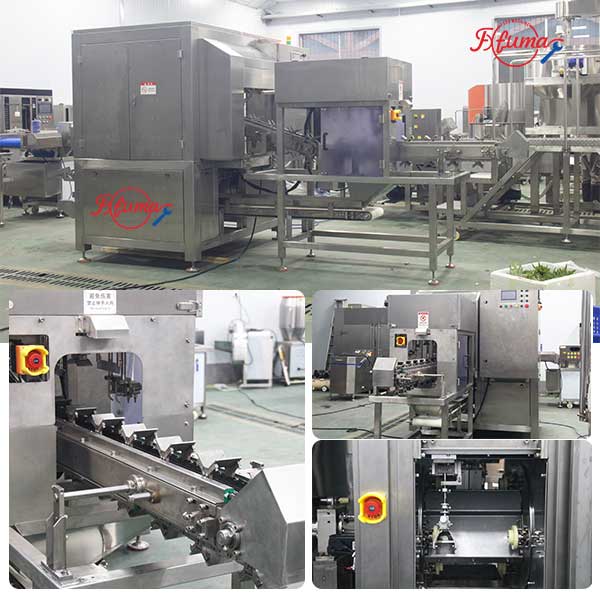

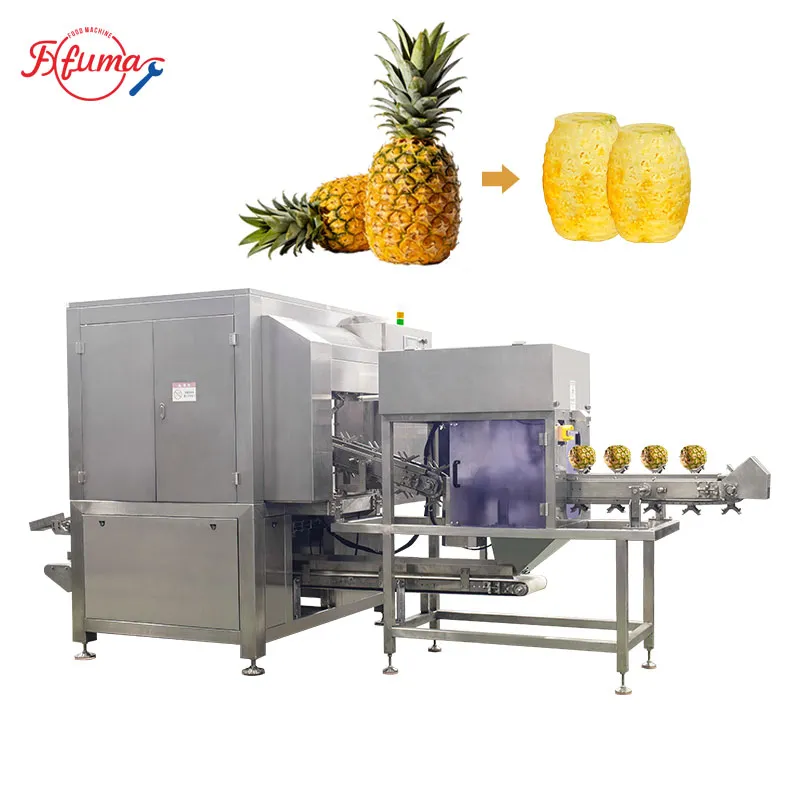

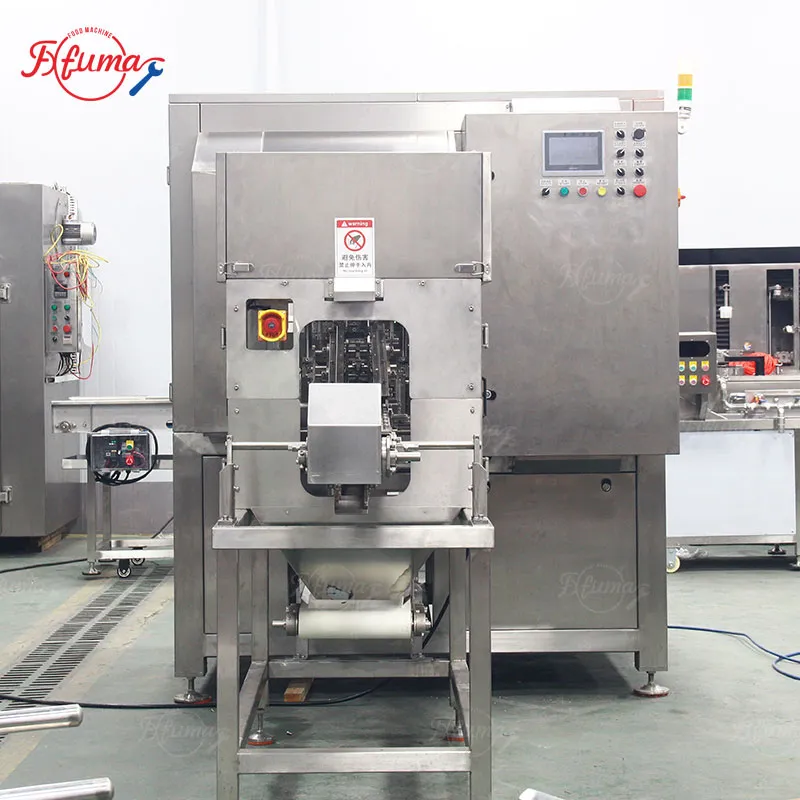

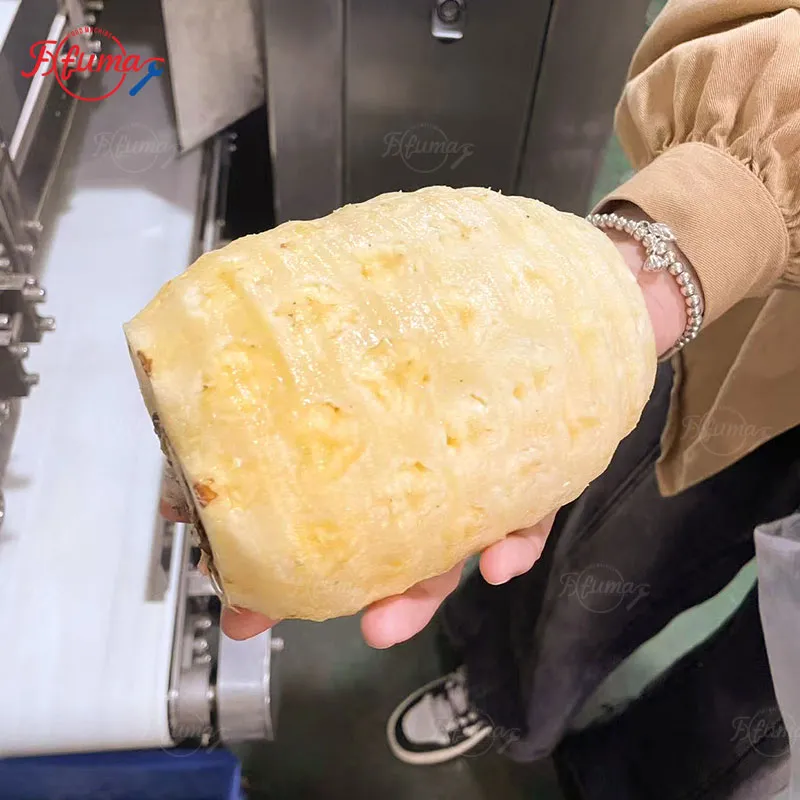

3-in-1 Automatic Pineapple Peeling Machine
▶ Features:
✅ 3-in-1 Automated Processing: Integrates peeling, deep de-eyeing, and end trimming in one machine. No additional equipment or manual steps required for a seamless workflow.
✅ High Efficiency & Yield Optimization: Processes up to 1200 pineapples per hour (please insert specific number), multiplying efficiency compared to manual labor. Optimized blade path minimizes fruit waste.
✅ Intelligent Adaptive System: Equipped with smart sensors to accommodate pineapples of varying sizes and shapes, guaranteeing perfect and consistent results for every fruit.
▶ Specifications:
| Model | FC-X5 | Processing Diameter | 70mm - 115mm |
| Size | L4700*W1760*H2050mm | Processing Length | 75mm - 150mm |
| Power | 3.85KW | Processing Speed | 1200 pieces per hour |
| Cutting Thickness | Adjustable | Pineapple Range | 325g - 1250g |

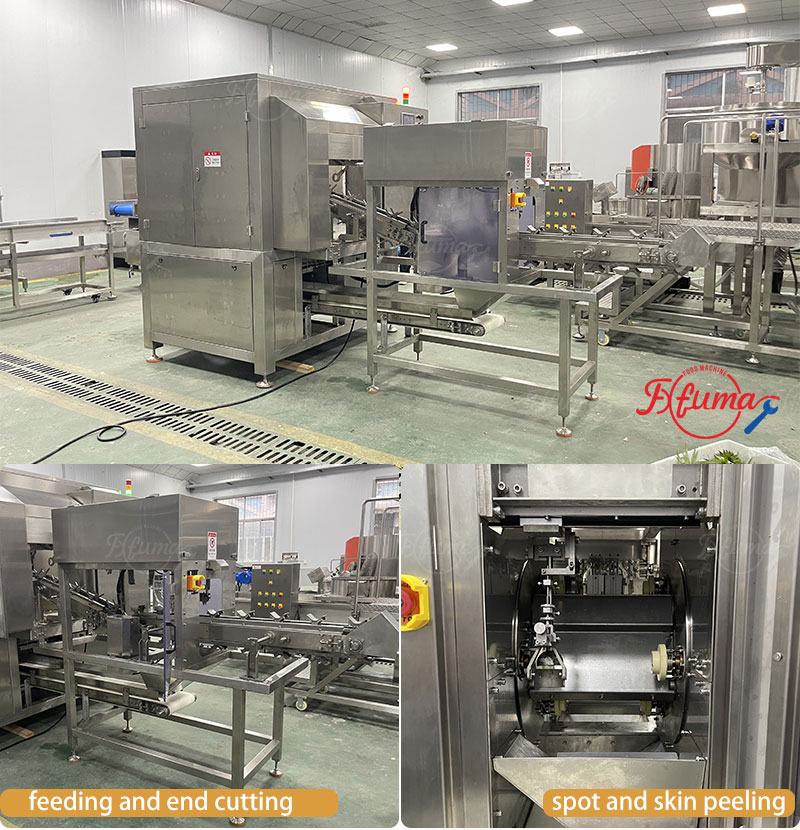

▶ Machine Operation Flow:
 |  |

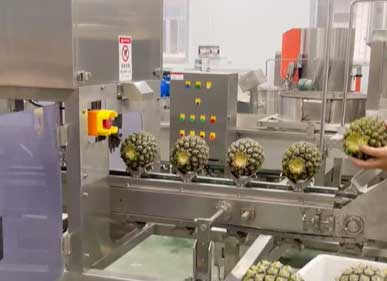

| 1. Placing pineapples into the conveyor | 2. The machine will automatically cut the head and tail. |
 |  |

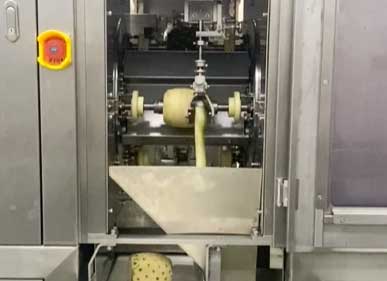

| 3. Peeling the skin and eyes of the pineapples continuously. | 4. Pineapples will be transferred to the outport conveyor. |
 |  |
Application & Services
▶ Machine Application:
This machine is capable of processing pineapple raw materials in batches and is used for producing products such as canned pineapples, dried pineapples, preserved pineapples, and pineapple jam. It replaces manual peeling and coring, improves production efficiency, ensures processing accuracy (e.g., uniform cutting thickness), and meets the needs of industrial mass production.
▶ Our Services:
1. Installation, equipment commissioning, and operator training.
2. Custom design based on your workshop space, budget, and capacity needs.
3. Direct factory shipping worldwide with our own official export license.
4. Long-term warranty with premium components for stable, heavy-duty production.
5. Multi-round materials testing before shipping ensures 100% perfect peeling performance.
Video (Contact us for more)
