How to Choose the Right Fruit & Vegetable Washing Solution (With 5 Real Processing Examples)
● ● Why Multi-Stage Washing Matters in Fruit & Vegetable Processing
Raw materials processed in fruit and vegetable factories vary widely in soil adhesion, peel tenderness and end-use requirements, so a single washing machine cannot handle all types of materials.
Our clients frequently encounter three critical troubles caused by incomplete cleaning:
1. Insufficient cleaning leads to an unattractive appearance
2. Residual sediment triggers customer complaints
3. Internal contamination accelerates deterioration and shortens shelf life.
Therefore, single-stage washing is far from sufficient for large-scale fruit and vegetable processing plants. We provide segmented multi-stage cleaning solutions, where each stage addresses one specific problem. Below are 5 sets of multi-stage cleaning solutions that have been fully validated and are running smoothly in food processing plants worldwide. You may find the matching configuration based on your raw material types, or contact us for customized solutions.
▶ Solution 1: Sweet Potato Washing
▶ Solution 2: Potato Washing Line
▶ Solution 3: Taro Washing Solution
▶ Solution 4: Salad / Lettuce Washing Machines
▶ Solution 5: Fruit Cleaning Machines
● ● Part 1: Five Real Washing Solutions

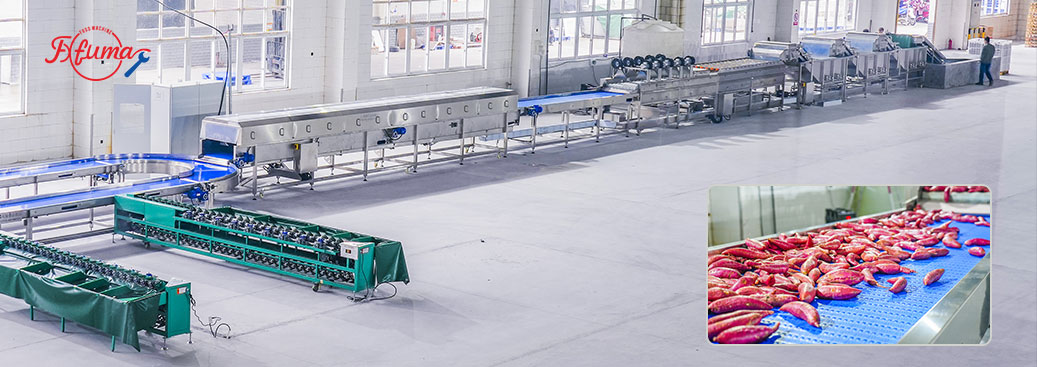

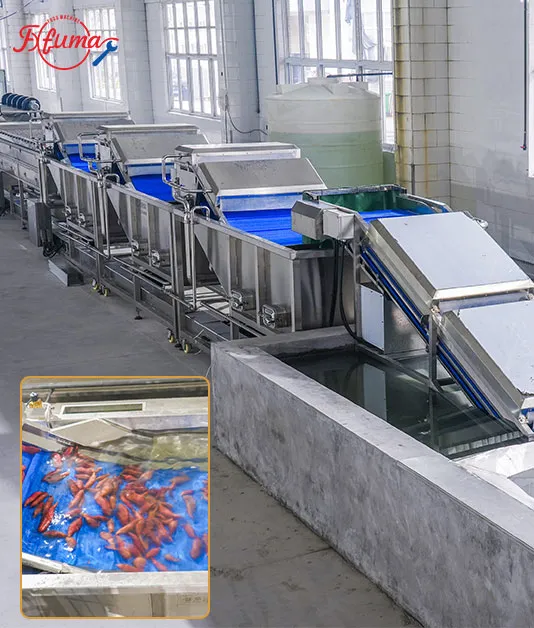

● Solution 1: Sweet Potato Washing Line
1. Equipment Flow：
 |
Large Soaking Tank → Bubble Washer ×3 → Brush Spray Washer → Hot-Air Dryer |
2. Equipment Details:
| Equipment | Description |

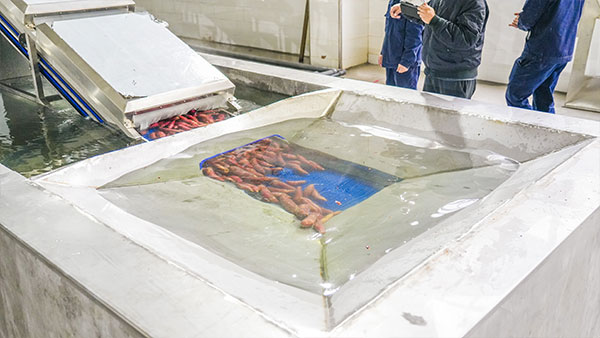

Large Soaking Tank
| ① Pre-Soaking Sweet potatoes are fully soaked to soften surface mud, sand, and skin impurities, reducing the load on downstream stages. The large-capacity tank supports continuous feeding at 1-5 TPH. |

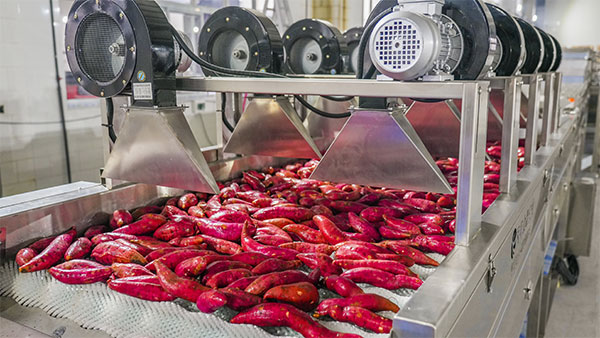

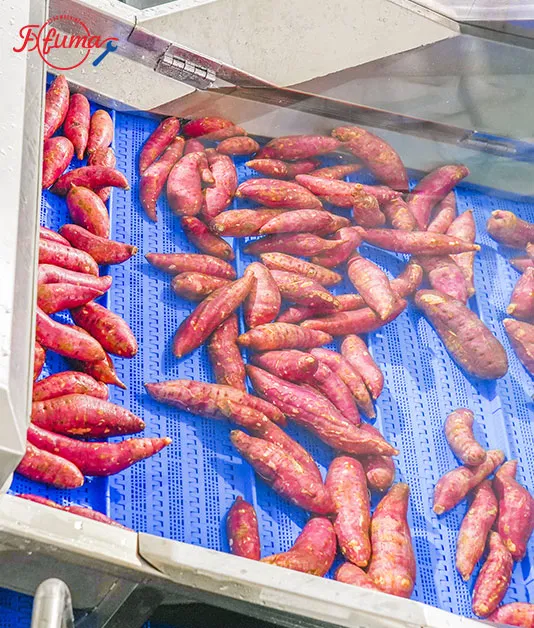

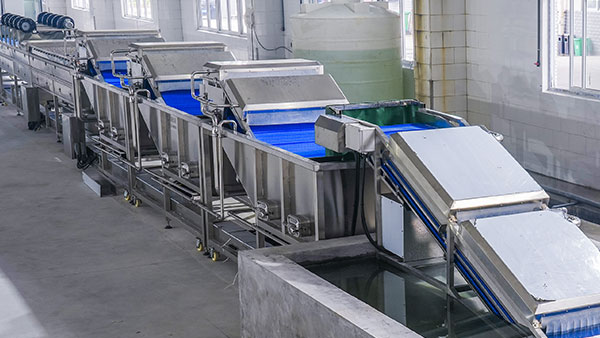

Bubble Washer ×3 (in series)
| ② Triple Bubble Washing Three-stage gradient washing: Stage 1 removes bulk soil, Stage 2 penetrates surface crevices, Stage 3 polishes to a spotless finish. High-pressure blowers generate dense bubble turbulence with water propulsion for 360° cleaning without skin damage. |

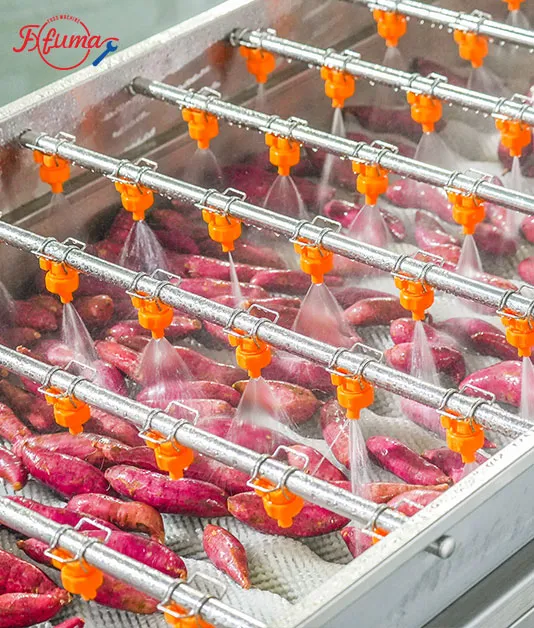

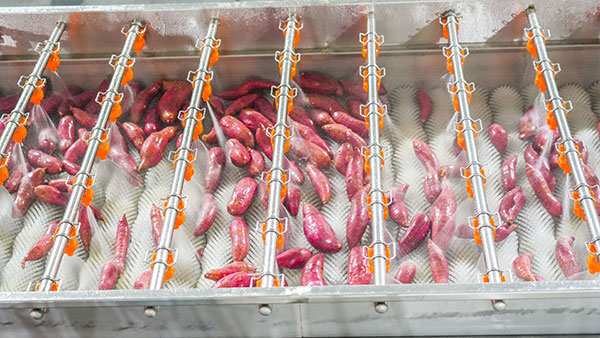

Brush Spray Washer
| ③ Brush Precision Washing Multiple rows of high-speed soft brushes combined with top-mounted high-pressure spray jets remove stubborn dirt from eyes and root hairs. Adjustable bristle stiffness suits different sweet potato varieties. |

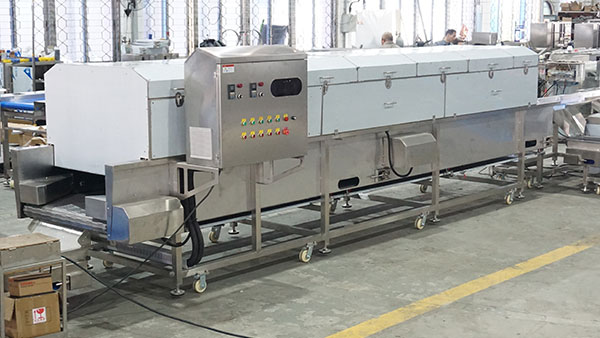

Hot-Air Dryer
| ④ Dehydration & Drying Powerful blower + heating module combination eliminates surface moisture. Dry tubers exit ready for grading, packaging, or further processing. VFD speed control with adjustable air temperature 30-60°C. |
Applications: Sweet potato, purple sweet potato, cassava, yam & other root crops
Design Capacity：1-5 TPH（customizable）
Key Advantage: Triple bubble wash ensures crevice cleanliness, brush washing preserves skin integrity, hot-air drying leaves no residual moisture

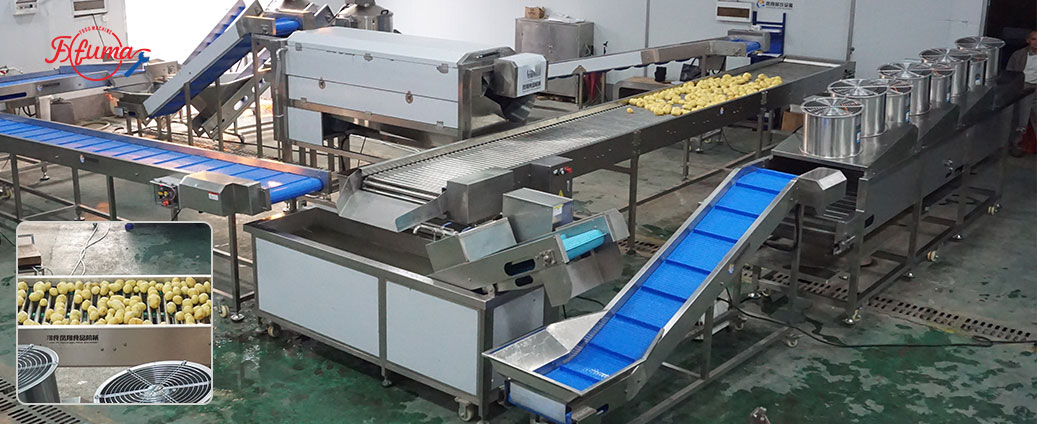

● Solution 2: Potato Washing & Peeling Line
1. Equipment Flow：
 |
| Drum Washer → Brush Peeler → Bubble Washer → Cold-Air Dryer |
2. Equipment Details:
| Equipment | Description |

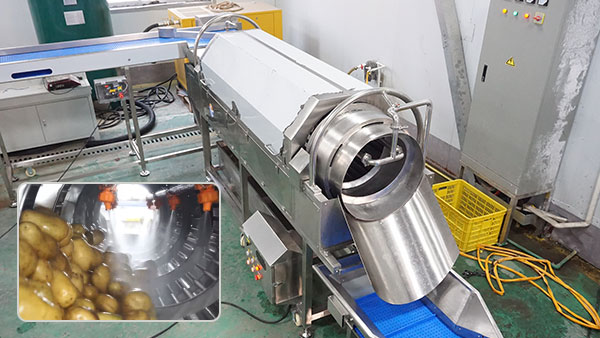

Drum Washer
| ① Drum Pre-Washing Inclined rotating drum uses product self-friction + high-pressure water jets to rapidly remove bulk soil and loose skin. |

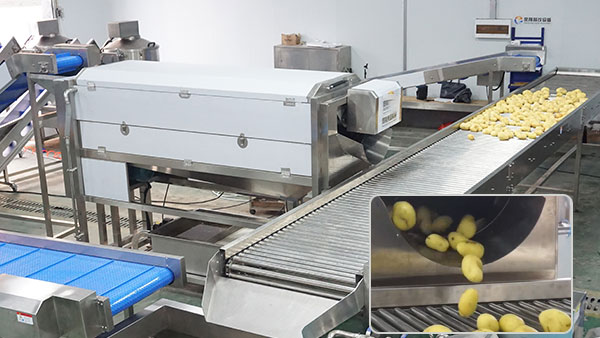

Brush Peeler
| ② High-Efficiency Peeling Core stage — high-speed abrasive/brush rollers achieve uniform peeling with ≥ 94% peel removal rate and ≤ 8% product loss. Continuous top spray carries away peel debris; roller gap adjustable by potato size. |

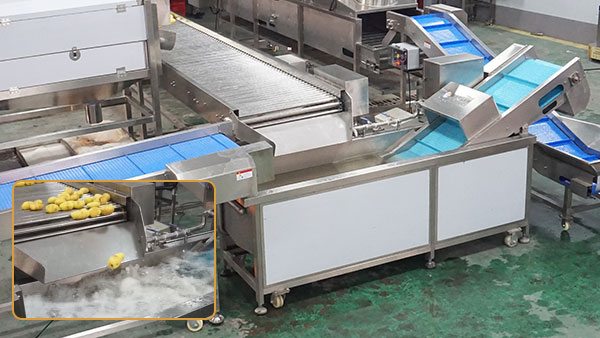

Bubble Washer
| ③ Bubble Precision Washing Peeled potatoes enter the bubble wash stage where turbulent water flow thoroughly rinses away residual peel fragments and starch slurry. Gentle bubbles protect the peeled surface. |

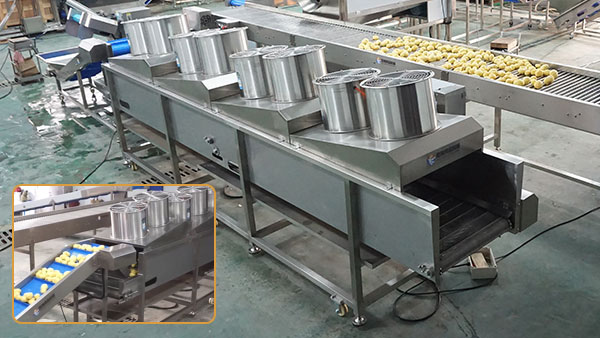

Cold-Air Dryer
| ④ Cold-Air Dehydration Ambient-temperature high-velocity air rapidly removes surface moisture, preventing oxidation and discoloration. Dry, bright potatoes exit ready for slicing, dicing, blanching, or IQF freezing. |
Applications: Potato, carrot, sweet potato (peeling required)
Design Capacity: 500- 3,000 kg/h
Key Advantage: Integrated washing & peeling, high peel rate with minimal loss, cold-air drying prevents oxidation

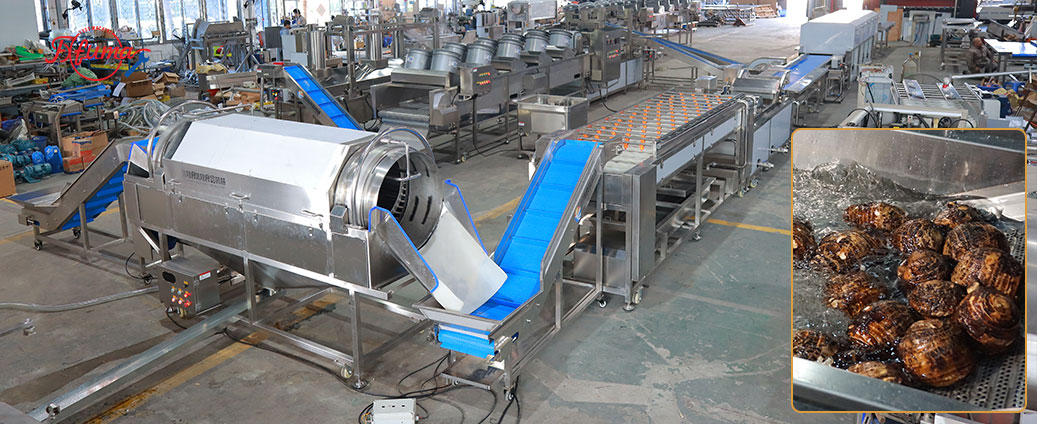

● Solution 3: Taro Washing Line
1. Equipment Flow：
 |
| Drum Washer → Brush Spray Washer → Bubble Washer → Hot-Air Dryer |
2. Equipment Details:
| Equipment | Description |

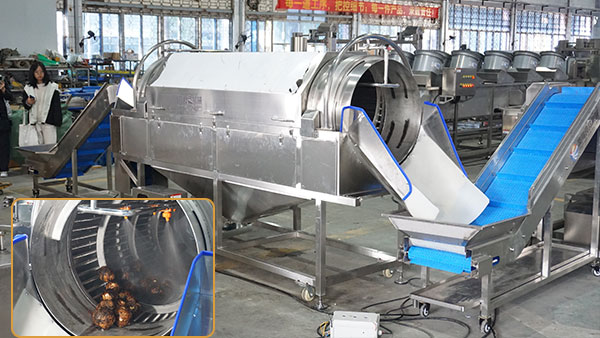

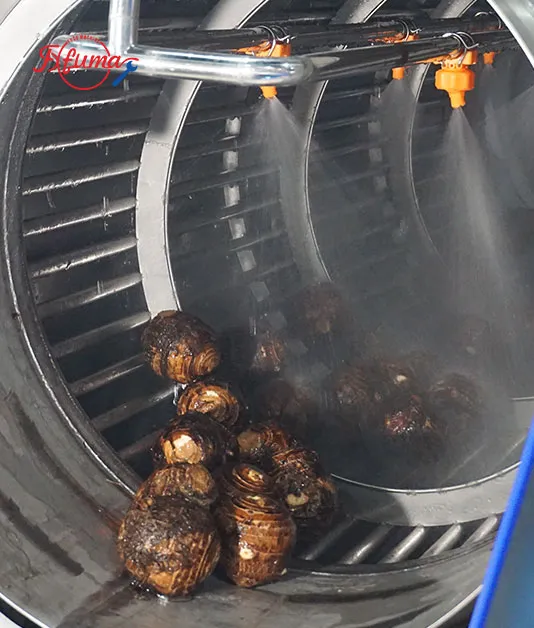

Drum Washer
| ① Drum Pre-Washing Removes surface soil and root hair residues. |

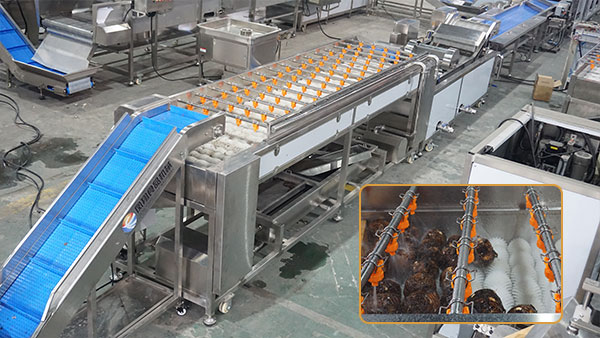

Brush Spray Washer
| ② Brush Precision Washing Deep scrubbing targets taro's textured, grooved surface. Multiple brush rows + high-pressure spray jets thoroughly remove soil trapped in crevices. Bristle density and stiffness calibrated specifically for taro skin. |

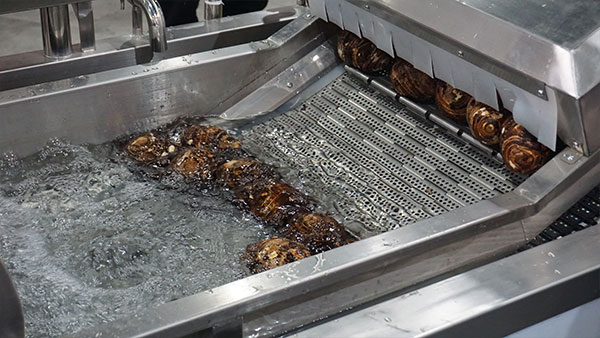

Bubble Washer
| ③ Bubble Rinse Bubble turbulence + water propulsion rinses away mud slurry and loose skin from the brush stage. |
Hot-Air Dryer
| ④ Hot-Air Drying Removes surface moisture to prevent mold during storage. Moderate air temperature preserves flesh quality. Dried taros proceed directly to grading, bagging, or further processing. |
Applications: Taro, betel taro, aromatic taro & other tuber crops
Design Capacity: 1-3 TPH
Key Advantage: Progressive multi-stage wash protects flesh, brushes engineered for taro's grooved texture, hot-air drying prevents mold

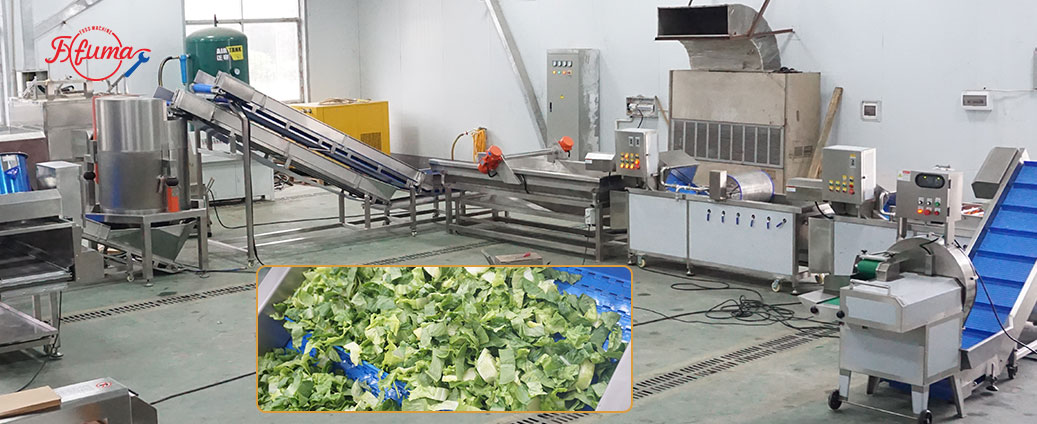

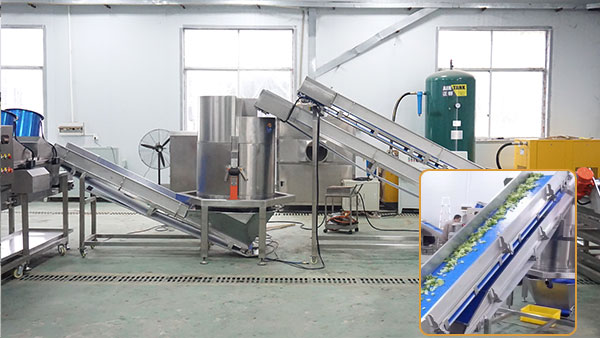

● Solution 4: Leafy Greens & Salad Washing Line
1. Equipment Flow：
 |
Ozone Bubble Spray Washer → Bubble Washer with Drum → Centrifugal Dewatering Machine |
2. Equipment Details:
| Equipment | Description |

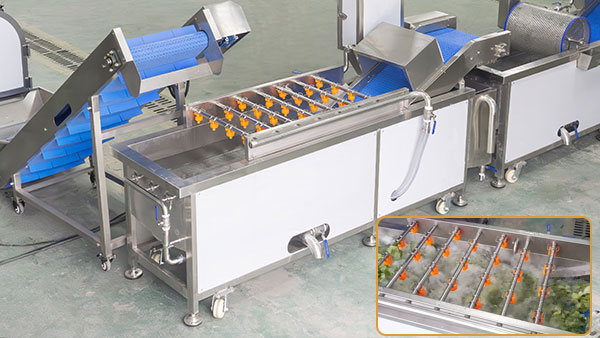

Ozone Bubble Spray Washer
| ① Ozone Sanitizing Wash Triple-action: ozone generator + bubble turbulence + overhead spray. Strong oxidizing ozone kills bacteria and degrades pesticide residues while gentle bubble agitation protects delicate leaves. Adjustable ozone concentration, 3-8 min treatment time. |

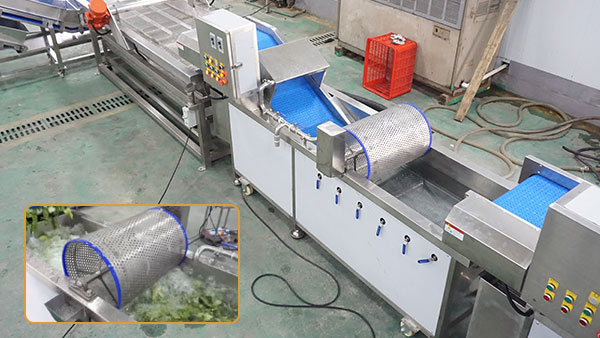

Bubble Washer with Drum
| ② Drum Bubble Precision Wash A rotary stainless steel mesh impurity removal drum is installed above the water surface of the washing tank, specially designed to separate floating impurities including broken vegetable leaves, weeds, insect eggs, hairs, plastic scraps and small insects. It solves the pain point of repeated backflow of sundries and secondary pollution of fruits and vegetables common in ordinary washing machines, making it a standard pre-processing equipment for production lines of clean-cut vegetables, fruits, canned food and Chinese medicinal herbs. |
Centrifugal Dewatering Machine
| ③ Centrifugal Dewatering High-speed spin drying removes free surface water. VFD-controlled speed, 1-3 min cycle, moisture content precisely adjustable to 5-10%. Leaves exit intact and undamaged, ready for MAP packaging. |
Applications: Lettuce, spinach, arugula, kale, mixed salad greens & other leafy vegetables
Design Capacity: 0.5-2 TPH
Key Advantage: Ozone sanitization eliminates bacteria & pesticide residue, drum + bubble dual wash protects leaves, centrifugal dewatering with precise moisture control

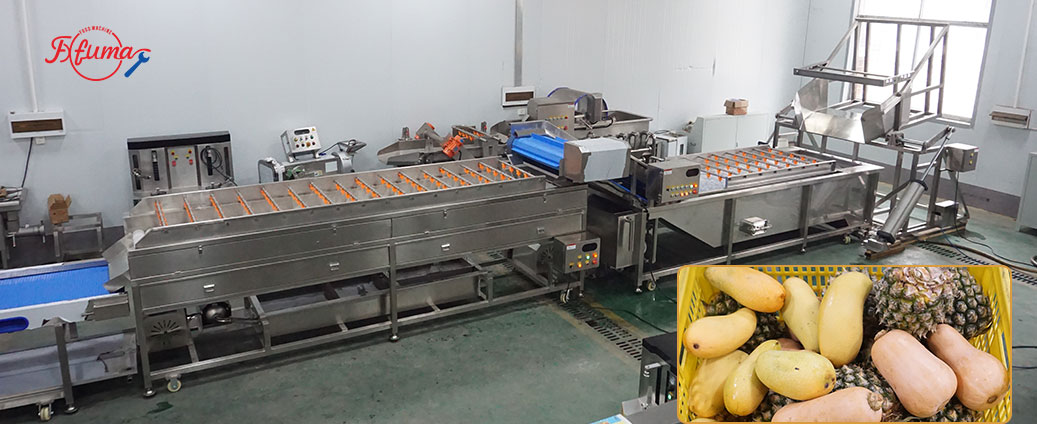

● Solution 5: Fruit Washing Solution
1. Equipment Flow：
 |
| Fruit Bubble Spray Washer → Brush Spray Washer |
2. Equipment Details:
| Equipment | Description |

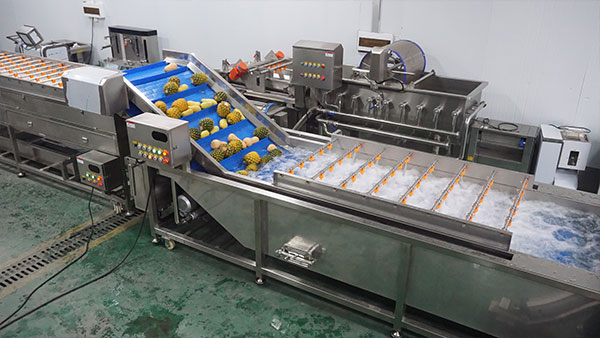

Fruit Bubble Spray Washer
| ① Bubble Spray Washing Bottom bubble turbulence tumbles fruit evenly through water, fully dislodging surface dust and pesticide residues. Overhead spray creates a water curtain for dual-action, zero-blind-spot cleaning. Adjustable conveyor speed suits varying fruit diameters and throughput. |

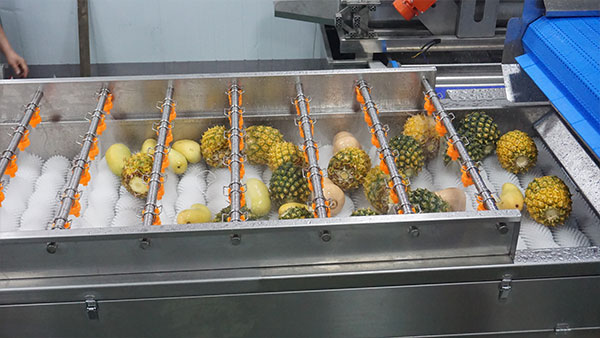

Brush Spray Washer
| ② Brush Polishing & Washing Multiple soft-brush rollers spin at high speed for surface polishing and deep cleaning. Mist spray protects skin while removing stem residue and wax coating. Soft bristle material prevents scratching on thin-skinned fruits like apples and citrus. |
Applications: Apple, citrus, pear, mango, tomato, kiwi & other fruits (including post-wax polishing)
Design Capacity：1-3 TPH
Key Advantage: Bubble + brush dual-stage precision wash, preserves natural bloom & wax without skin damage, meets fresh-consumption fruit washing standards
| Next Step | What It Means | Typical Products |
| Fresh Pack | Wash → sort → pack → cold chain | Supermarket-ready taro, carrots, sweet potatoes |
| Cut & Portion | Wash → peel → cut/dice/slice → pack | Diced carrots for foodservice, shredded cabbage for coleslaw |
| Blanch & Freeze | Wash → cut → blanch → IQF freeze | Frozen taro chunks, frozen diced carrots, frozen spinach |
| Ferment / Pickle | Wash → cut → brine/ferment → pack | Pickled radish, kimchi base, fermented lotus root |
| Ready-to-Eat | Wash → cut → cook → vacuum pack | Salad kits, steamed sweet potato pouches, meal-prep trays |
| Market Channel | Product Format | Quality Expectation |
| Supermarket Retail | Fresh-packed whole or cut vegetables | Spotless appearance, traceable, consistent sizing |
| Foodservice / HORECA | Bulk peeled/cut produce in foodservice packs | Reliable cleanliness, uniform cuts, shelf life |
| Frozen Food Distributors | IQF vegetables in bulk or consumer packs | Micro-compliance, no foreign matter, blanched to spec |
| Meal Kit & CPG Brands | Washed, portioned, recipe-ready components | Food safety certified, shelf-stable packaging |
| Export / Cross-Border | Any of the above, plus phytosanitary compliance | Meeting destination country standards |
| Washing Level | Sell As | Approximate Price Tier | Buyer Type |
| Unwashed / Field-run | Raw commodity | $ (lowest) | Wholesaler, starch mill |
| Basic washed | Wholesale clean produce | $$ | Distributor, wet market |
| Multi-stage washed + sorted + packed | Retail-ready fresh produce | $$$ | Supermarket chain |
| Washed + cut + IQF frozen | Frozen food ingredient | $$$$ | Frozen food brand, foodservice |
| Washed + processed + branded | Consumer packaged good | $$$$$ | Direct retail, export |
