Fruit Processing Solutions

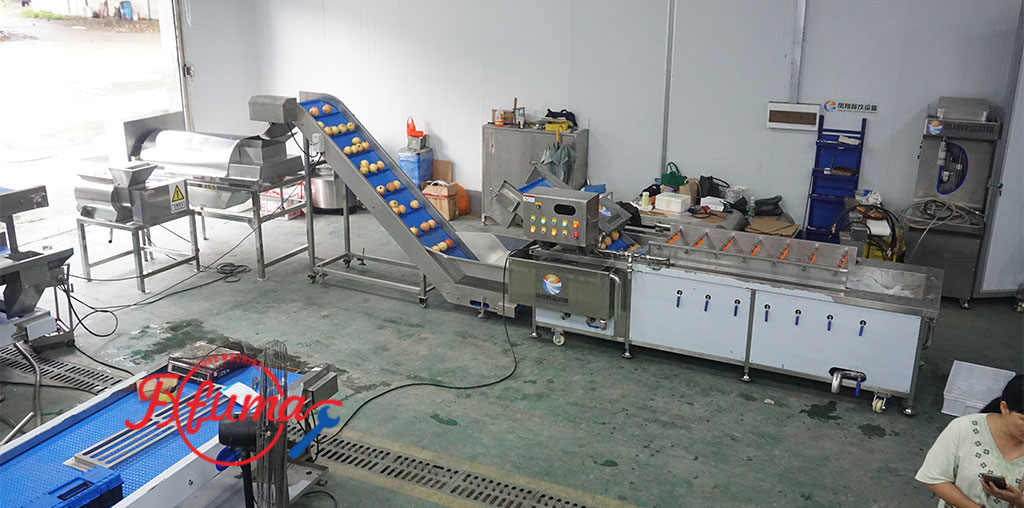

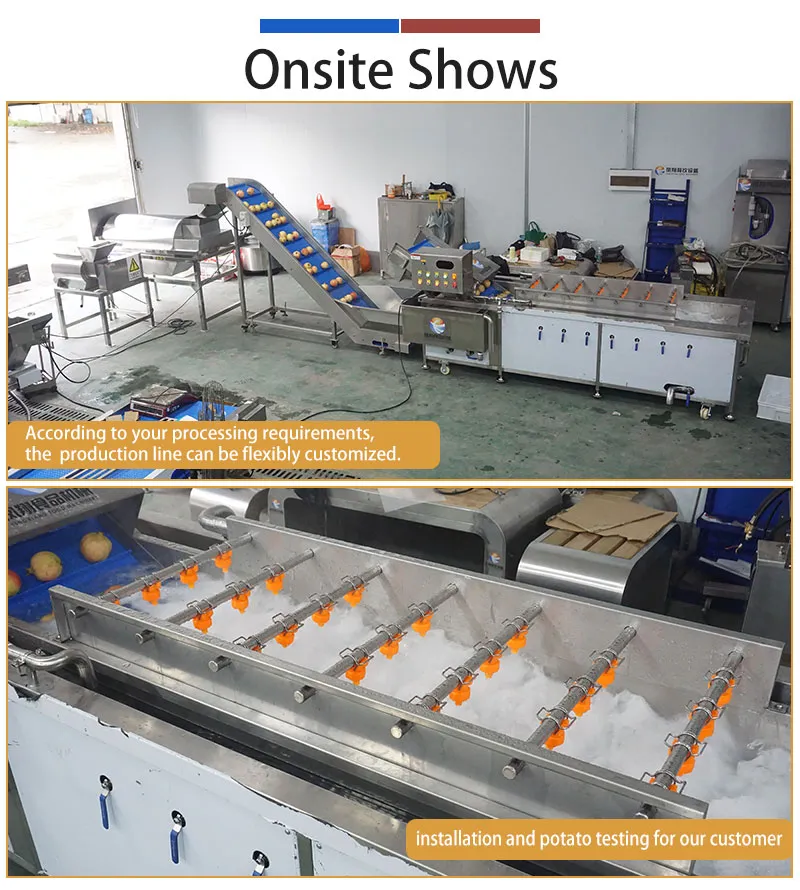

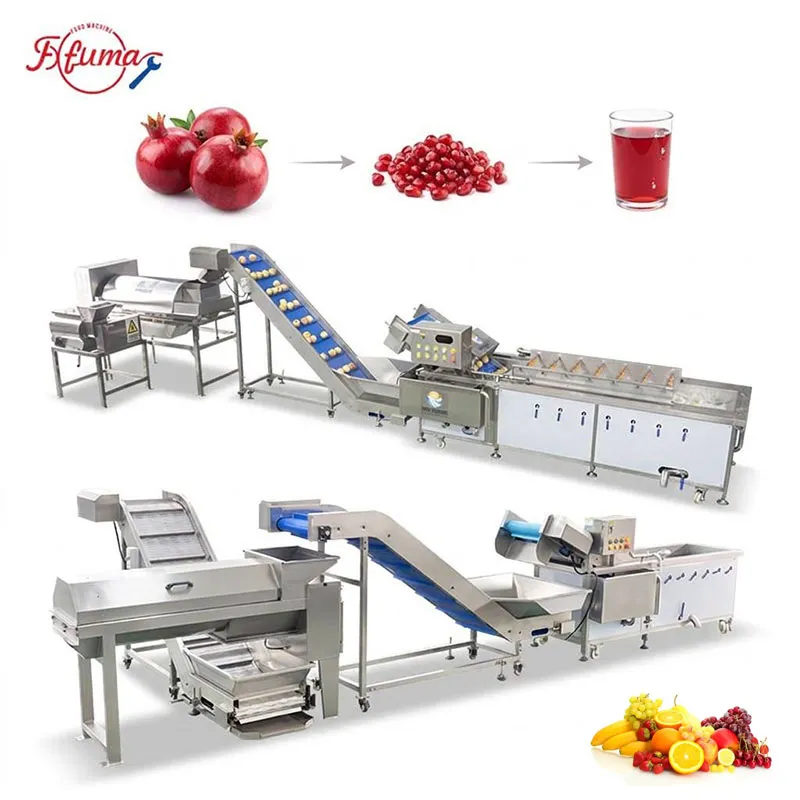

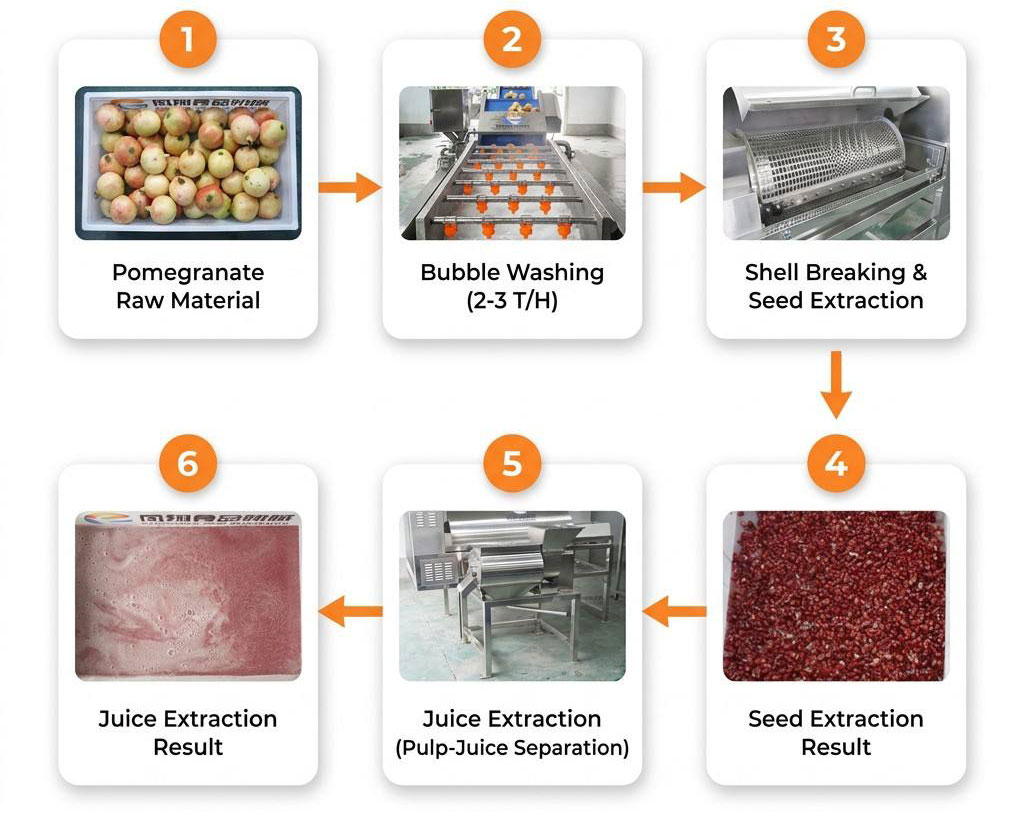

One pomegranate processing line, three core jobs. A fruit bubble washing machine, a pomegranate seed-removing machine, and a pomegranate juice extractor machine are combined into a continuous flow, so you buy one integrated system instead of three uncoordinated units.
You may also like:
Fruit washing from washing,peeling to juice making line
Plum Emblica Gooseberry Juice Pre-Processing Line
What This Line Does?
▶ Description:
The pomegranate processing line starts where your raw fruit arrives. It removes field dirt and surface residue in the bubble washing stage, separates the edible seeds (arils) from the peel and pith, and extracts juice from the separated seeds — delivering two clean intermediate products:
▶ Key Machines of Pomegranate Line:
| Machines | Description | Specifications |

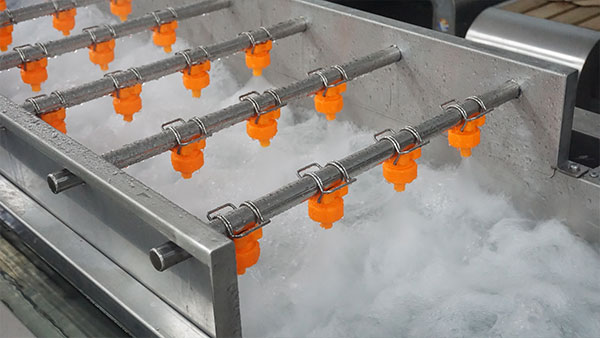

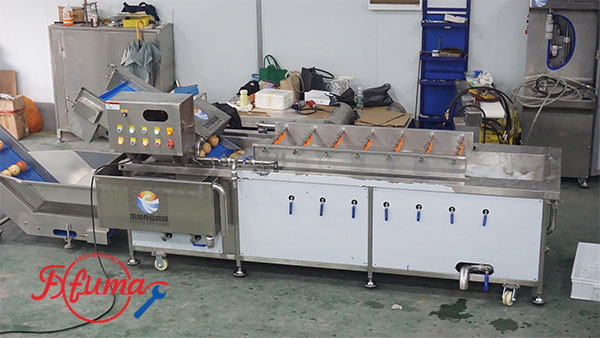

 | Whole pomegranates are soaked and tumbled in a food-grade SUS304 wash tank with high-pressure air bubbles and spray rinsing. The combined turbulence loosens sand, mud and field residue without bruising the fruit skin. | Model: WA-2000 Voltage: 380V Power: 3.55 kW Capacity: 2000‑3000 KG/H Output varies depending on material texture. Overall Dimension: 3393*920*1276 mm |

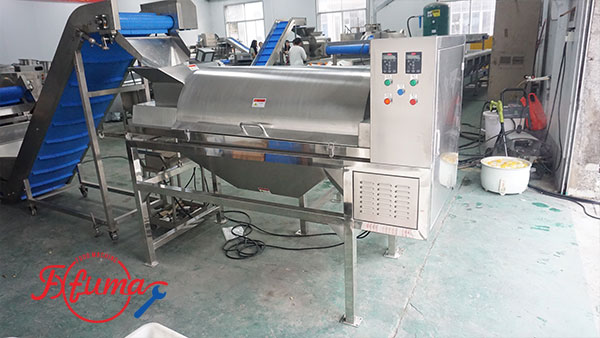

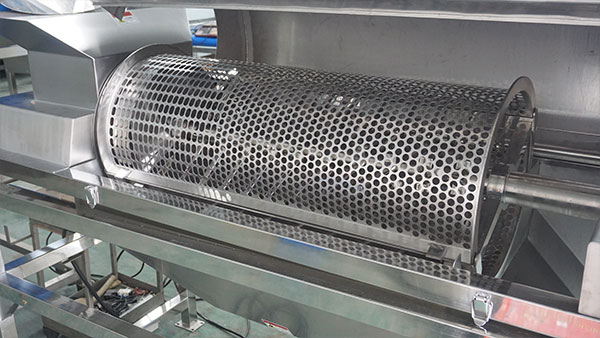

 | The core of the line. Fruit is positioned, opened and gently worked so that arils separate from peel and pith with minimum seed damage. The machine outputs clean pomegranate seeds ready for fresh/snack sale — or, in the juice configuration, feeds directly into the extraction stage. | Model: FX-TP-1 Voltage: 220V/380V Power: 3 kW Capacity: 1 T/h Peeling Rate: above 98% Net Weight: 380 kg Overall Dimension: 2100×950×1800 mm |

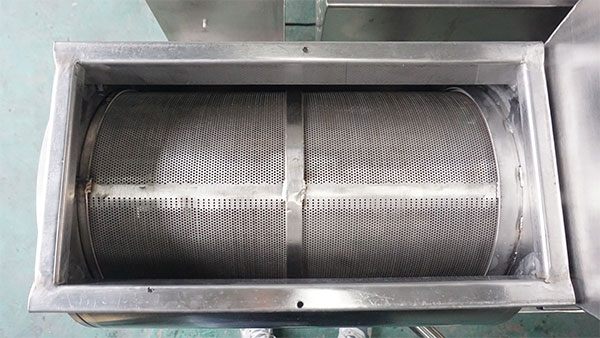

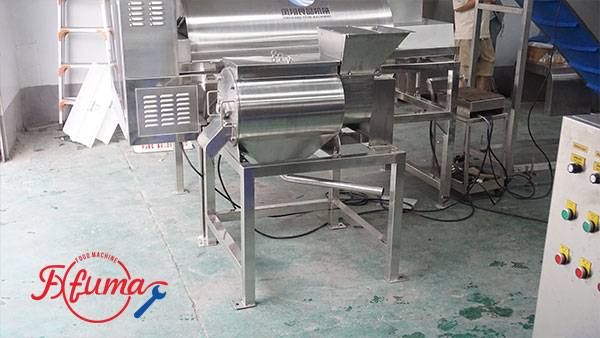

 | Separated seeds are pressed to release raw pomegranate juice while peel and membrane stay out of the juice path. Designed for continuous operation at plant scale | Model: DJ1-1 Dimension: 980x820x1200 mm Power: 3kW Output: 0.3-1 T/h (varies by material) Screen Mesh: 0.6/0.8/1.0/1.5/2/3/4/6 mm options
|
▶ Processing Effect
 |  |
| Pomegranates | Pomegranate waste |
 |  |
| Pomegranate seeds | Pomegranate juice |
▶ Who This Line Is Built For
| Target buyers | Raw Materials / Pain Points |
| Juice factory | Labor‑intensive washing and seed‑removing for juicing raw materials, especially during peak seasons |
| Importer / Exporter | Insufficient production capacity in peak periods |
| Fruit processing plant | Loss of off‑spec fruits and slow‑moving fruits; Fresh‑cut arils supplied to chain stores and supermarkets |
All product-contact surfaces use SUS304 stainless steel, with smooth welds and drainable design. Electrical components are protected and arranged for easy maintenance. The line is delivered with operation and maintenance documentation in English, plus a recommended cleaning schedule — built to pass a food-plant audit, not just a look.
 |  |  |
A fruit juice processing line does not earn its keep on one crop alone. This front-end platform is designed so the washing, conveying and juice extraction stages can also process guava, passion fruit, apple, and other fruits whose core needs are washing and juice extraction.
Material properties vary greatly among different fruits. Front‑end processing heads such as seed‑removing, crushing and filtering shall be selected according to fruit types. For configuration and production capacity when switching production between different fruits, please advise your seasonal fruit mix upon inquiry. Contact us and our engineers will provide a tailored matching solution.
FUMA has designed and manufactured fruit & vegetable processing machinery for 21 years, running a 3,800㎡ factory with an in-house engineering team and 15+ patents in food machinery. Every line is assembled, tested, and water-run before shipment. Our service scope covers: factory layout advice, installation supervision, operator training, and after-sales spare parts support — including dedicated parts support for customers in South America such as Brazil. Ask for the production video and reference list of similar fruit processing lines; we will show you what runs in real plants.
