Cutting & Portioning

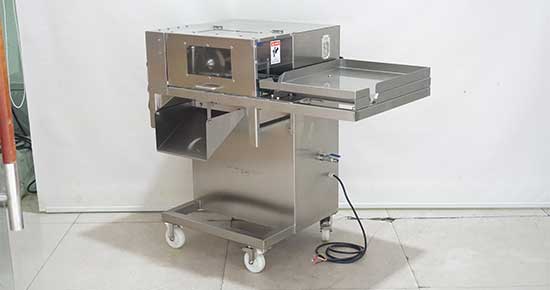

Name: Fillet machine for small fish
Model: FGB-168
Power: 0.22kw*2
Voltage: 380V
Weight: 100kg
Size: 660*1050*1020mm
Capacity: 60pcs/min
Max fish size: 40mm
MOQ: 1 Set
Function: Cutting fish into 1 bone and 2 fillets
Note: FGB-168 is good for small-sized fish, FGB-170/FGB-180 is better for medium and large-sized fish.
Real Our Fish Fillet Machine Cases
Fillet cases:
Suitable for various small fish, such as silver carp, bream, grass carp, black carp, common carp, salmon, mandarin fish, tilapia, sea bass, barracuda, etc., as well as small white stripe fish, small silver white fish, small snakehead fish, etc.

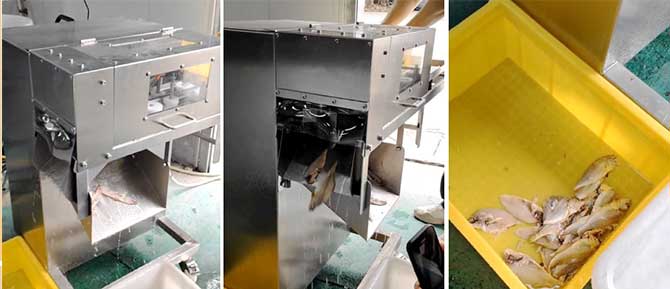

Our clients' machine tests:
Description
Reliable:
✅ Operating this machine is a breeze:
Simply place the semi-thawed fish, which helps maintain freshness, at the conveyor belt's entrance. The machine then automatically and smoothly executes a three - step bone - removal process.
✅ Easy to clean: It can be directly rinsed with water
✅ Made of stainless steel 304
✅ Wear-resistant, durable, and corrosion-resistant, and meets food hygiene standards.

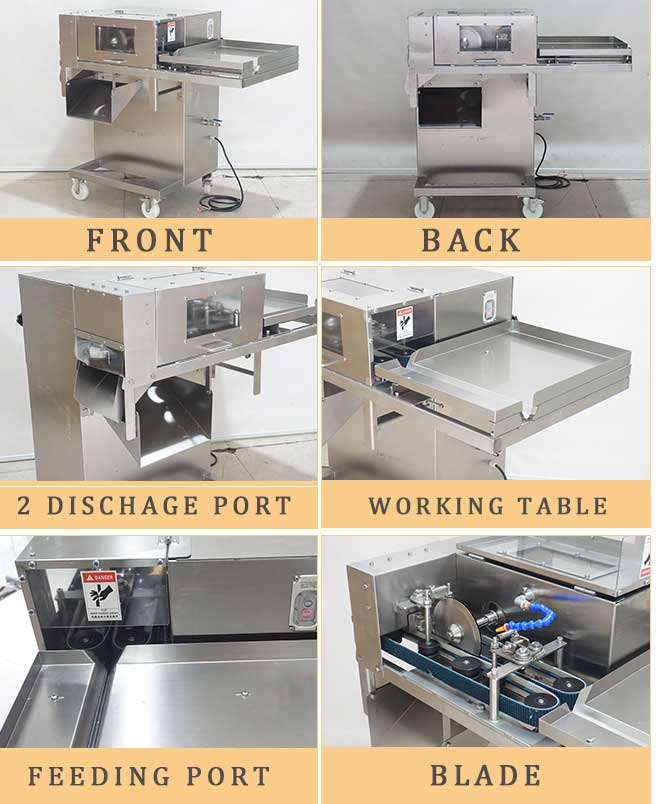

Fish fillet machine details:
In the middle of the fish clamping belt, there is a circular disk-shaped blade. When the machine is in operation, the fish clamping belt will firmly hold the semi-thawed fish to ensure its stability. As the fish clamping belt moves, it will smoothly guide the fish towards the circular disk-shaped blade, and this setup enables precise and efficient cutting.
Fish fillet products:
The fish filleting machine has a wide range of applications. In the food processing industry, it can be used for the subsequent production of high-quality dried fish and frozen fish fillets sold in supermarkets. If the fish bones are removed, they can also be processed into fried fish bones. In the pre-prepared food industry, it can be used to make various pre-prepared fish dishes.
