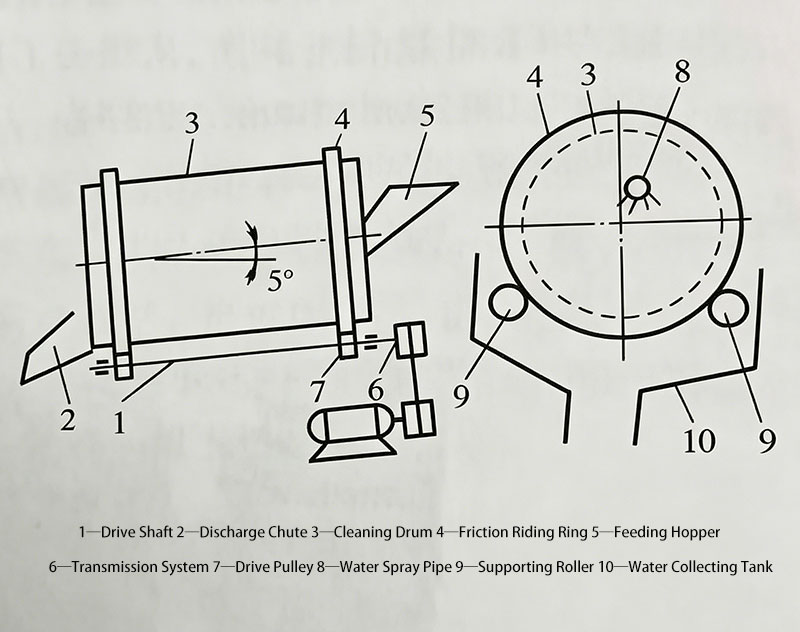

1. How is a Rotary Drum Washer Built? (Core Structure)

Don't be fooled by its simple cylinder appearance; the mechanical design is incredibly smart, consisting of a washing drum, water spray system, machine frame, and driving device. To handle tons of mud and vegetables, here is how we build it:

 ● Smart "Friction Drive" Design: The frame houses two parallel shafts equipped with two pairs of driving wheels and free-spinning support rollers. The drum itself has metal rings welded on both ends. When the motor turns the driving wheels counter-clockwise, the friction force drives the entire heavy drum to rotate clockwise. This keeps the operation smooth and powerful!

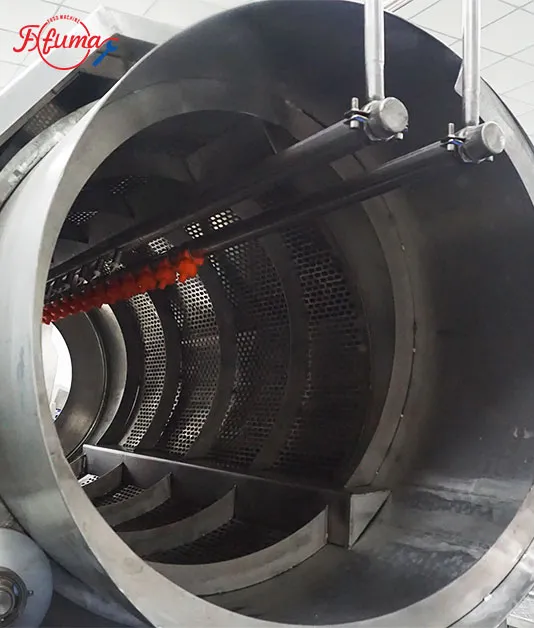

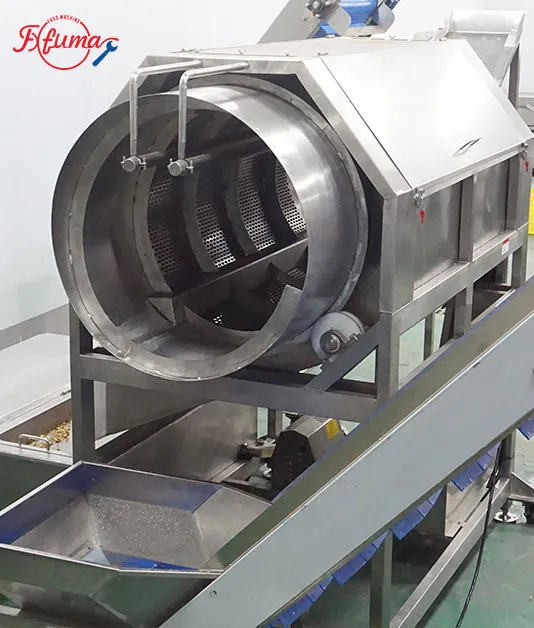

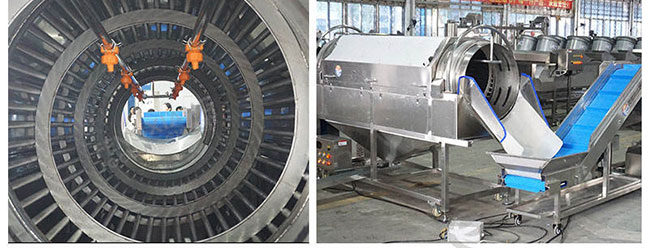

 ● A Screen Drum with Thousands of Holes: The drum is made of steel plates drilled with countless small holes (or welded with steel bars). This means dirty water and sand drop immediately through the mesh into the bottom collection hopper, ensuring your product never suffers from "secondary pollution."

 ● The Magic 5° Tilt Angle: We intentionally install the drum at a 5-degree tilt relative to the horizontal line. Thanks to this angle, as the drum rotates, the materials tumble while automatically moving down the slope toward the discharge outlet. No extra conveyor needed—it discharges automatically once washed!

2. How Does It Get the Mud Off? (Washing Principle)

Its cleaning process can be summed up in four words: Tumbling friction, high-pressure rinsing.As raw materials enter the rotating drum, they are carried upward by centrifugal and friction forces, and then tumble back down. During this process, potatoes and ginger rub, flip, and collide against each other intensely. At the peak of this tumbling action, the internal water pipes blast them with high-pressure water streams. As soon as the mud is loosened by friction, it is instantly flushed away. The dirty water and sediment escape through the mesh, leaving behind clean, bright produce.

3. Operator's Guide: How to Run & Maintain the Machine? (Operation Points)

If you want your machine to last long and wash perfectly, just have your workshop operators follow these 3 straightforward rules:

 1. Water First, Drum Second, Feed Last: When starting work, turn on the fresh water switch first and adjust the flow; next, start the drum; once it runs smoothly, finally start feeding materials. You can fine-tune the material flow and water volume as you go to ensure every single potato gets enough fresh water.

 2. Watch the Wheels & Keep Them Greased: During daily inspections, check the contact and wear between the drum and rollers. Most importantly—lubricate them regularly! Take care of the bearings and rollers, and the machine will serve you for years longer.

 3. Adjust Pressure Based on Dirt, Drain Mud Promptly: If a batch of ginger comes in with extra sticky or hard mud, turn up the spray pressure immediately to blast it with more force until you get the perfect result. Make sure the dirty water and sand pass through the mesh and drain out for treatment right away—never let sludge build up inside the machine.

4. Contact Us for Factory Customization

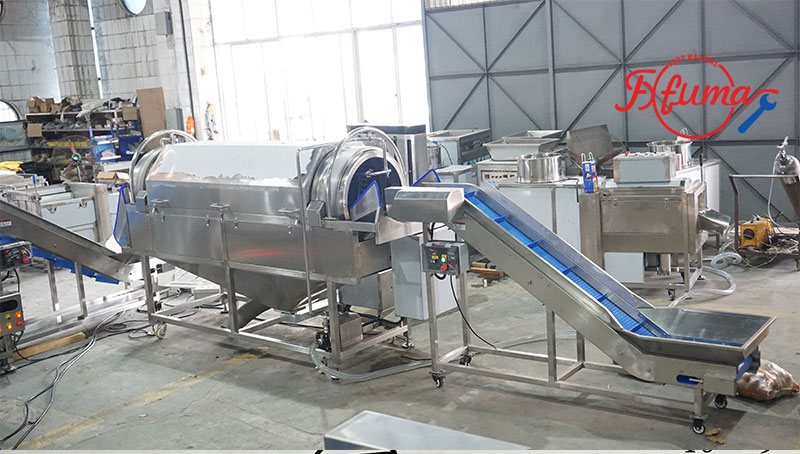

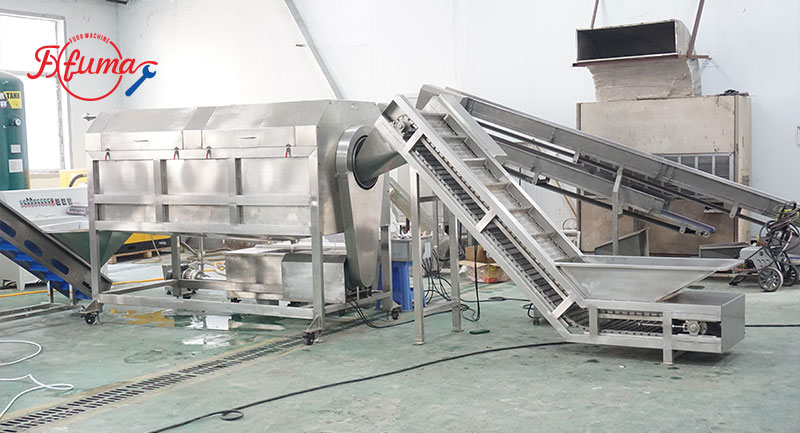

For heavy-mud materials like ginger, potatoes, and taro, our rotary drum washer can either work as a standalone unit or integrate seamlessly into your automatic production line. As an integrated factory supplier, we can customize the drum length, mesh hole size, and stainless steel thickness based on your capacity needs. Click below to contact our professional engineers and get your tailored washing solution today!
