Berry Materials We Process

This berry processing line is suitable for:

  •  Blueberries

  •  Strawberries

  •  Currants (red, black, white)

  •  Cranberries

  •  Gooseberries

  •  Other small berry fruits

Material Characteristics

Berry fruits are characterized by:

  •  Thin skin and high sensitivity to damage

  •  Small size with surface crevices

  •  Easy contamination by sand, insects, and residues

  •  Requirement for gentle yet effective washing

Core Pain Points: Berry materials are characterized by high sugar content, fragility and perishability. Traditional high-intensity mechanical cleaning will cause enormous losses.

Berry Washing and Processing Line – Mechanical Flow

Feeding → 1st Destemming Drum Washer → 2nd Destemming Drum Washer → Rolling Brush Washer → Bubble Washing Machine → Rinsing & Dewatering → Next Processing

Machine:	Function:	Pictures:

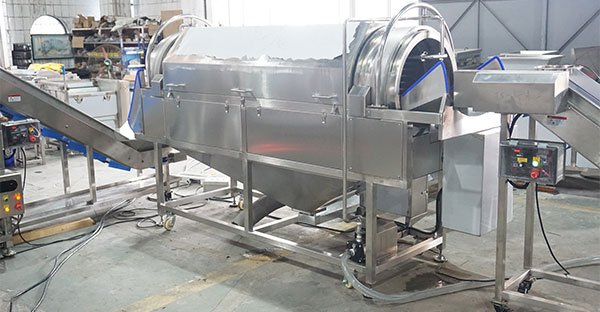

Destemming Drum Washing Machine Capacity: 3t/h Size: customized according to your food Power: 3.3kw Voltage: 380V	•  Removes stems, leaves, and floating impurities   •  Performs pre-washing and secondary washing   •  Low-speed rolling protects berry integrity

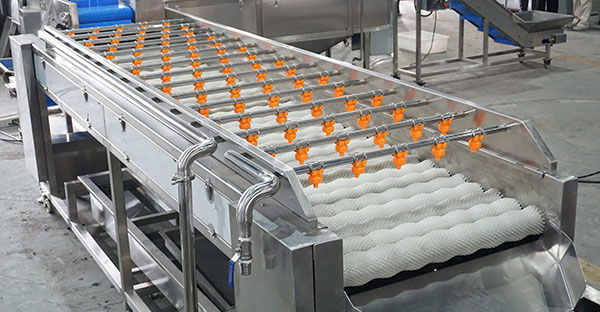

Rolling Brush Washing Machine Capacity: 1.5T-2T/H   Size: 4000*1282*1451MM Power: 7kw Voltage: 380V	•  Soft food-grade brushes remove stubborn dirt   •  Improves surface cleanliness and appearance   •  Adjustable brush hardness for different berries

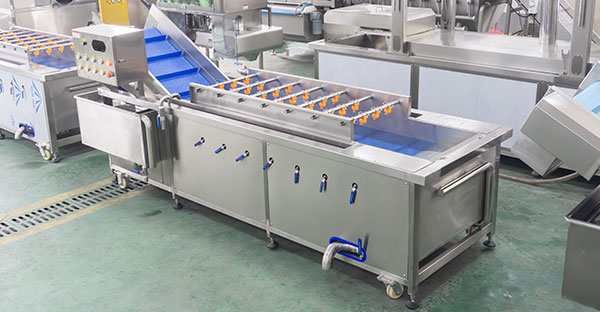

Bubble Washing Machine Capacity: 1000-1500KG/H, 2000-3000KG/H Size: 3504*967*1274mm Power: 3.55kw Voltage: 380V	•  Gentle final washing without mechanical pressure   •  Removes micro-impurities from crevices   •  Optional ozone or micro-nano bubble system

Customized Manufacturer Advantages

• Custom capacity and layout design

• Equipment tailored to berry characteristics

• SUS304 / 316 stainless steel structure

• Water-saving circulation system

• Installation, training and after-sales support

Downstream Processing Lines for Berry Washing Line

1. IQF Frozen Berry Processing Line

After washing, the berry washing line seamlessly connects to an IQF frozen berry processing line. Clean and intact berries are dewatered and then transferred to quick freezing systems, preserving freshness, color, and nutritional value. Gentle washing ensures minimal damage, which is critical for high-quality frozen berries.

2. Berry Juice Processing Line

The berry washing line is an essential pre-processing step for berry juice production. Clean berries ensure stable juice quality, improved taste and reduced equipment wear in crushing and pressing stages. Effective removal of sand, stems and impurities is critical for food safety and product consistency.

3. Berry Jam and Puree Processing Line

For jam and puree production, the berry washing line guarantees raw material cleanliness before cooking and concentration. Gentle yet thorough washing prevents off-flavors and contamination, ensuring smooth texture and uniform color in final jam products.
