Pre-Processing Solutions
The garlic production line is compact and cost-effective, significantly reducing labor intensity and costs. It is particularly suitable for food processing plants, central kitchens, and large processing centers producing fresh-keeping garlic cloves, dehydrated garlic, and garlic powder. The backend can be seamlessly connected to packaging lines, enabling integrated operation from raw material to packaged finished product, greatly enhancing your production efficiency and product competitiveness.
Peeled Garlic Production Line
✅ Cost-Effective, Continuous Production

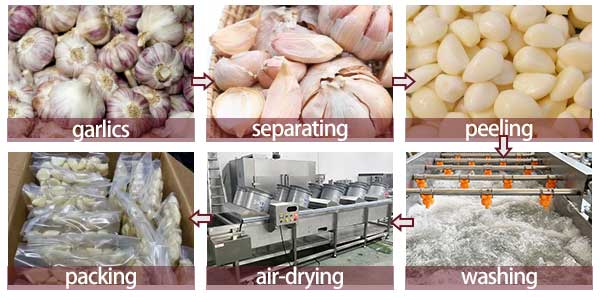

The production line integrates bulb breaking, peeling, washing, and drying into a whole process, enabling continuous operation. It significantly improves production efficiency while drastically reducing labor costs and intensity.
✅ Flexible Adaptation, High Scalability
The production line is designed to be compact and adaptable, allowing customization based on the customer’s actual space and output requirements. Its backend is engineered for seamless integration with various packaging lines, effortlessly expanding the production process to form a complete closed-loop system from raw materials to finished products.
Machine Details

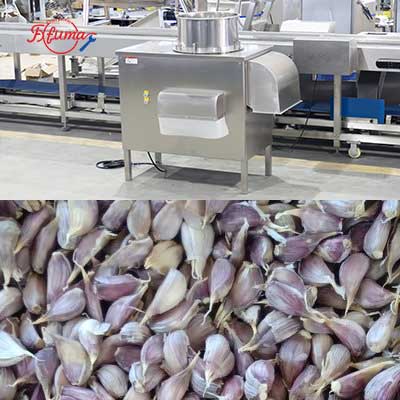

| 1. The garlic clove separator is designed to effectively separate garlic bulbs into cloves without damage, with a clove separation rate as high as 98%. |  | Model: FX-139 Power: 1.1kw Voltage: 220V Capacity: 400-800kg/h (Customized) Size: 1140*570*1250mm Weight: 113kg |

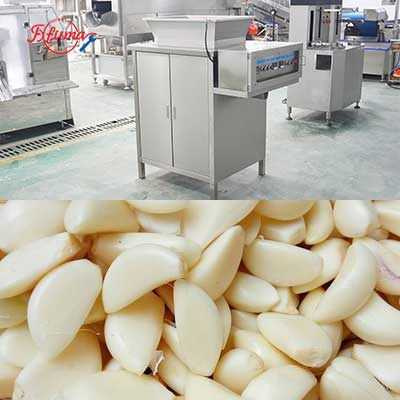

| 2. The garlic peeling machine achieves the separation of peeled garlic skins in the warehouse through centrifugal air blowing. |  | Model: FX-128-2 Power: 2.2kw Voltage: 220V Capacity: 150kg/h (Customized) Size: 825*725*1310mm Weight: 110kg |

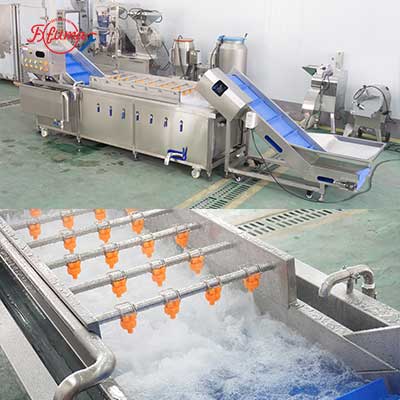

| 3. The bubble cleaning machine uses high-pressure water flow and a bubble-generating device to impact the surface of garlic. The energy generated by the bursting of bubbles exerts an impact and scrubbing effect on the surface, thereby cleaning the surface of garlic thoroughly. |  | Model: WA-2000 Power: 3.55kw Voltage: 380V Capacity: 1000-1500KG/H (Customized) Size: 3504*967*1274mm Packaging Weight: 460kg |

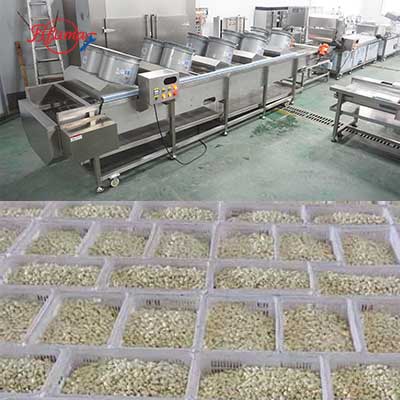

| 4. The air-drying machine is made of all stainless steel, controlled by frequency conversion speed regulation, and operates stably.It uses a high-air-volume and low-noise fan to make the air flow spray out through the nozzles. The air temperature for drying is normal temperature, which can effectively remove the moisture on the surface of garlic. |  | Model: DM-50 Power: 26kw Voltage: 380V Capacity: 1000-2000kg/h (Customized) Size: 5000*840*1462mm |
