Peeler

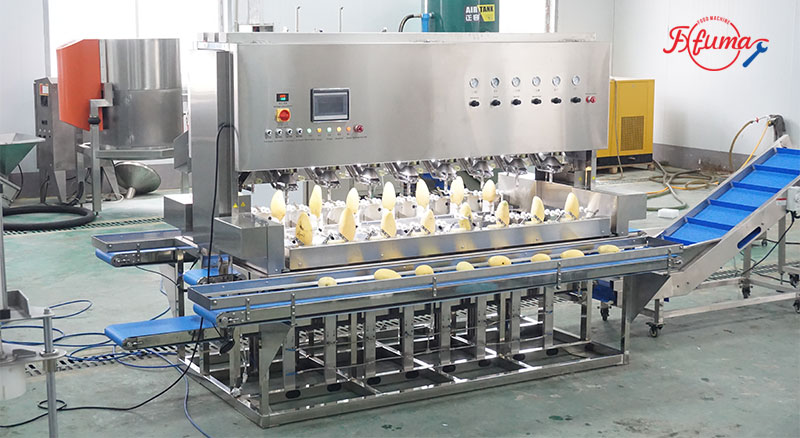

The 8/16 heads mango peeler machine is an industrial-grade solution designed for large-scale mango processing plants. Featuring a multi-head synchronous peeling system, it can process 8 or 16 mangoes simultaneously, ensuring high productivity for continuous operations. The machine delivers uniform and precise peeling with minimal flesh loss, improving yield and product consistency.

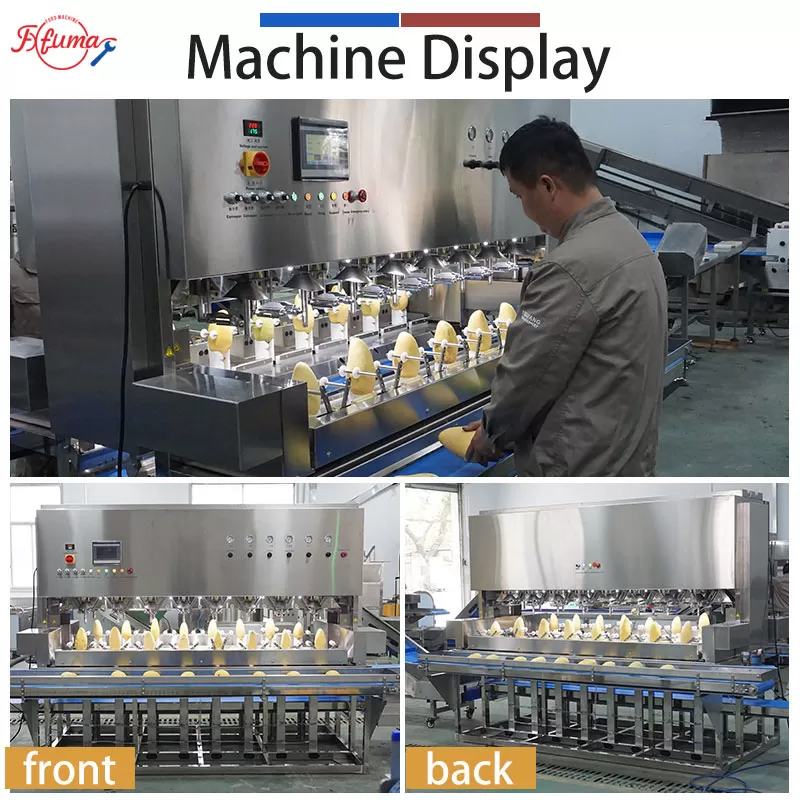

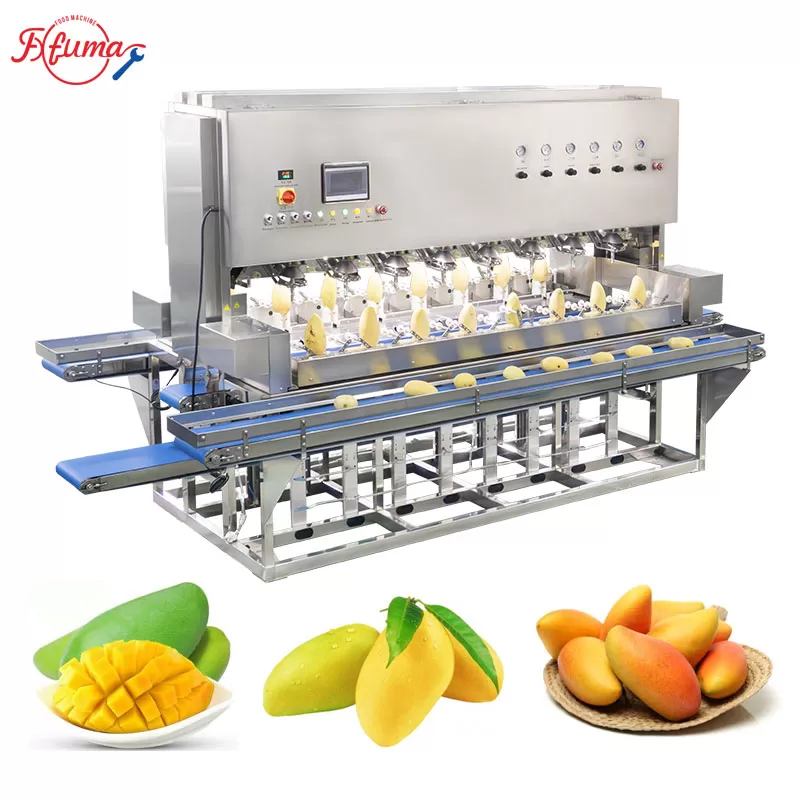

Industrial Mango Peeler Machine
Features:

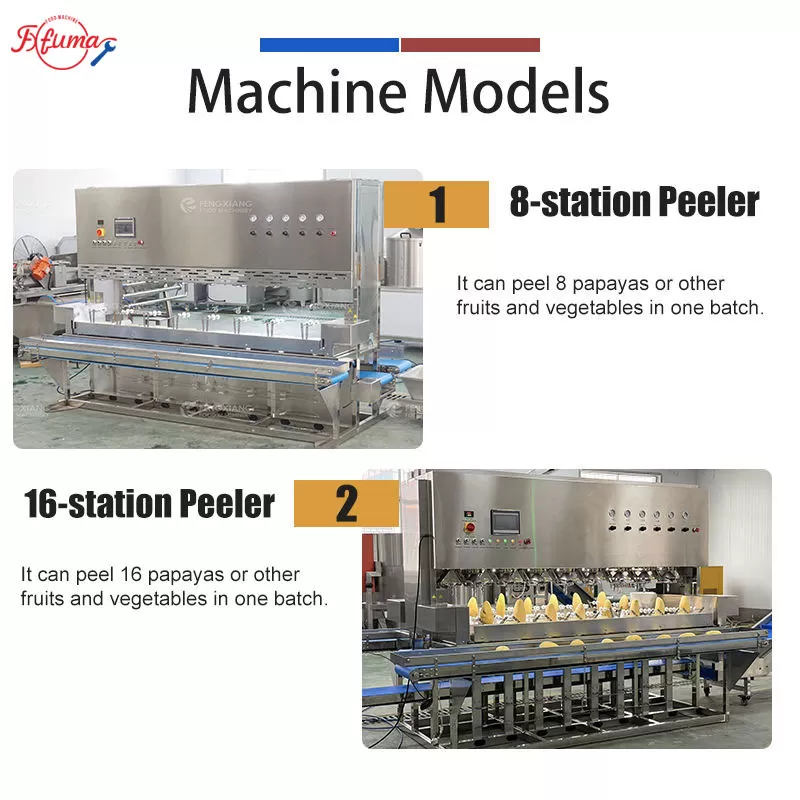

✅ 8 or 16 heads available to match different production capacities
✅ High-volume peeling with multi-head synchronous operation
✅ Precise peeling minimizes flesh loss and improves yield
✅ Industrial-grade construction for continuous heavy-duty operation
✅ Ideal for large processing plants and centralized fruit facilities
Specifications:
 |  |
■ 16 Heads Peeler Fruit Size Range: Length 70–260 mm; Diameter 25–110 mm Peeling Thickness: 1.5–2.7 mmBlade Specification: Stainless steel, 100 × 20 × 0.8 mm Capacity: Suitable for mangoes, approx. 400 g each; peeling capacity up to about 1,800 kg per hour Rated Power: ≤ 3 kW; Single-phase, three-wire AC 220V / 50 Hz Compressed Air Requirement: Air pressure 0.5 MPa; Air consumption ＞ 0.1 m³/min Machine Dimensions: 3220 × 1800 × 1980 mm Net Weight: 700 kg | ■ 8 Heads Peeler Fruit Size Range: Length 70–260 mm; Diameter 25–110 mm Peeling Thickness: 1.5–2.7 mmBlade Specification: Stainless steel, 100 × 20 × 0.8 mm Capacity: Designed for mangoes, approx. 400 g each; peeling capacity up to about 1000 kg per hour Rated Power: ≤ 2.8 kW; Single-phase, three-wire AC 220V / 50Hz Compressed Air Requirement: Air pressure 0.5 MPa; Air consumption > 0.1 m³/min Machine Dimensions: 3220 × 1460 × 1980 mm Net Weight: 400 kg |
Machine Details
 |  |

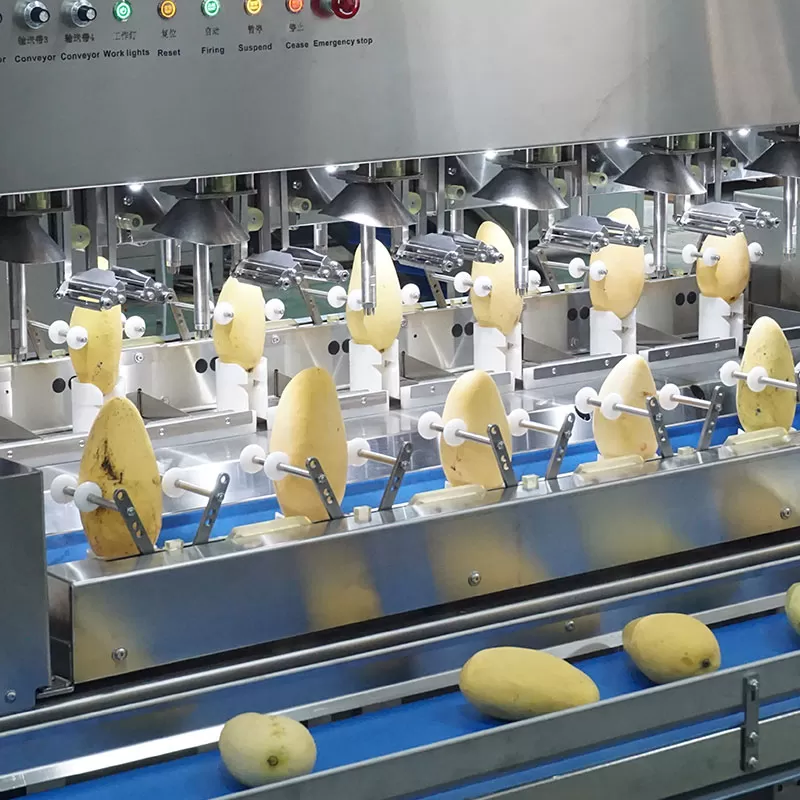

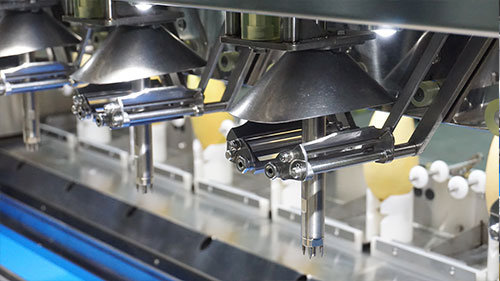

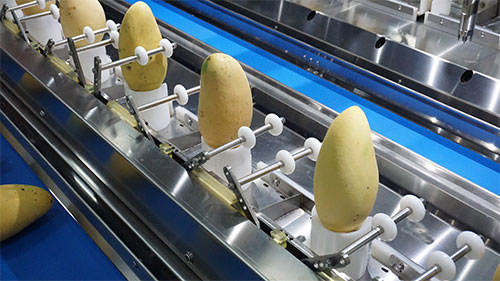

| Mango Holding Device | Peeler Blades |
 |  |

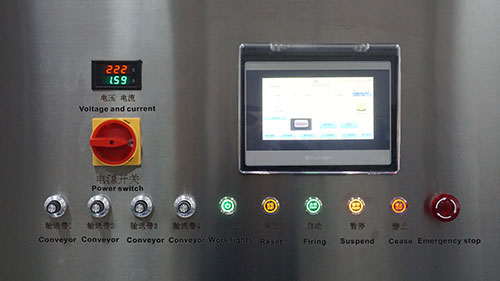

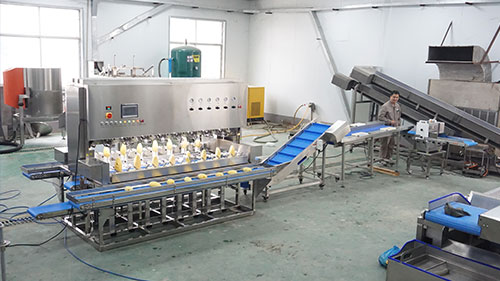

| PLC Controller and Buttons | Customized Mango Processing Line (Click here to know more) |
 |  |

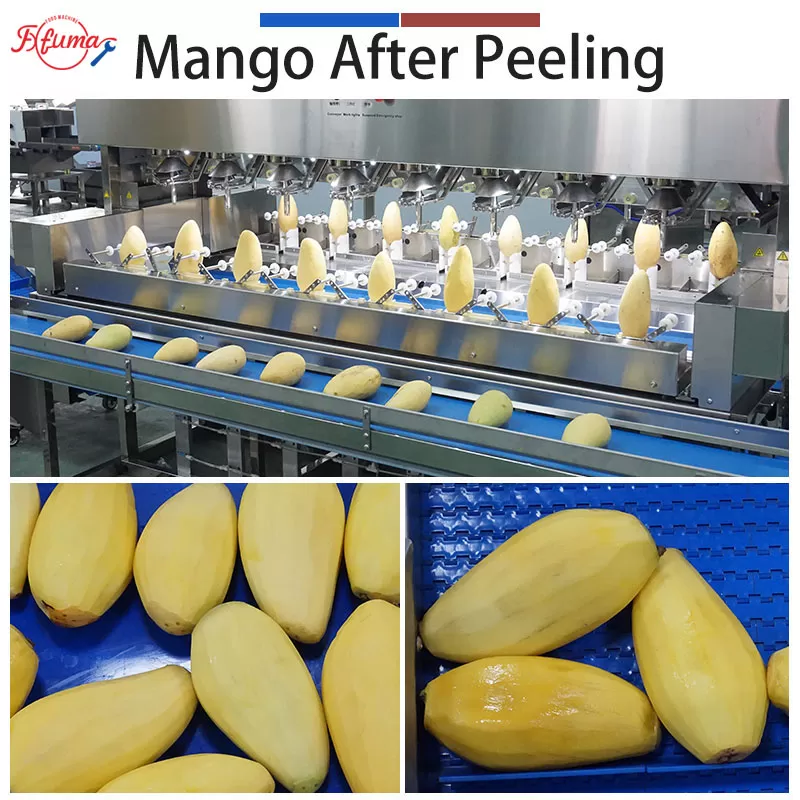

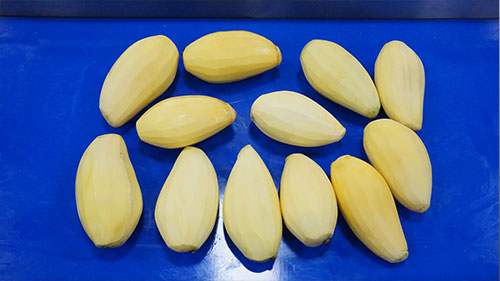

| Mangoes | Mango After Peeling |
