Packing
Speed: 16-50 bags/min
Packaging bad size:
W: 80-200mm
L: 100-350mm
Packing range: 100-2000g（Depends on product type）
Air consumption: ≤0.6m³/min
Voltage: 220V/380V
Power: 2.3kw
Size: 2100*1650*1600 mm
Weight: 1800kg+200kg+300kg
Accuracy: ≤ ±1%
WEIGHING PRINCIPLE

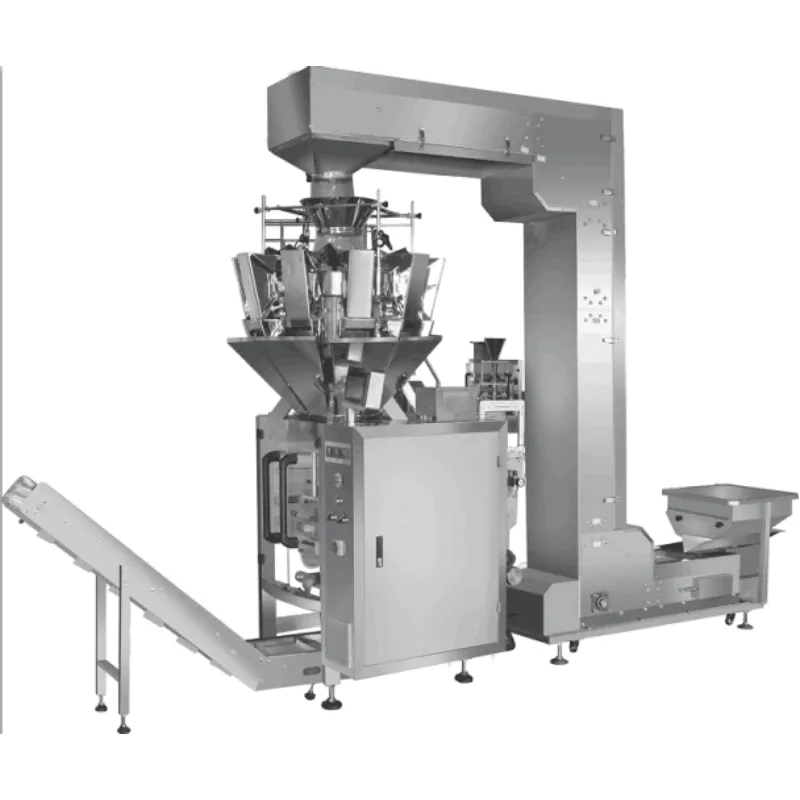

Multi - scale collaborative operation: The equipment is usually composed of multiple independent weighing units, and each weighing unit is equipped with a high - precision weighing sensor. During operation, food materials are evenly distributed into the hoppers of each weighing unit, and the sensors generate corresponding electrical signals according to the weight of the materials they bear.
Intelligent algorithm combination: The system collects and analyzes the data of multiple weighing units through intelligent algorithms. According to the preset target weight, it quickly calculates the optimal combination method, selects one or more groups of materials from the weighing units for combination to meet the precise packaging weight requirements.
PACKAGING PRINCIPLE

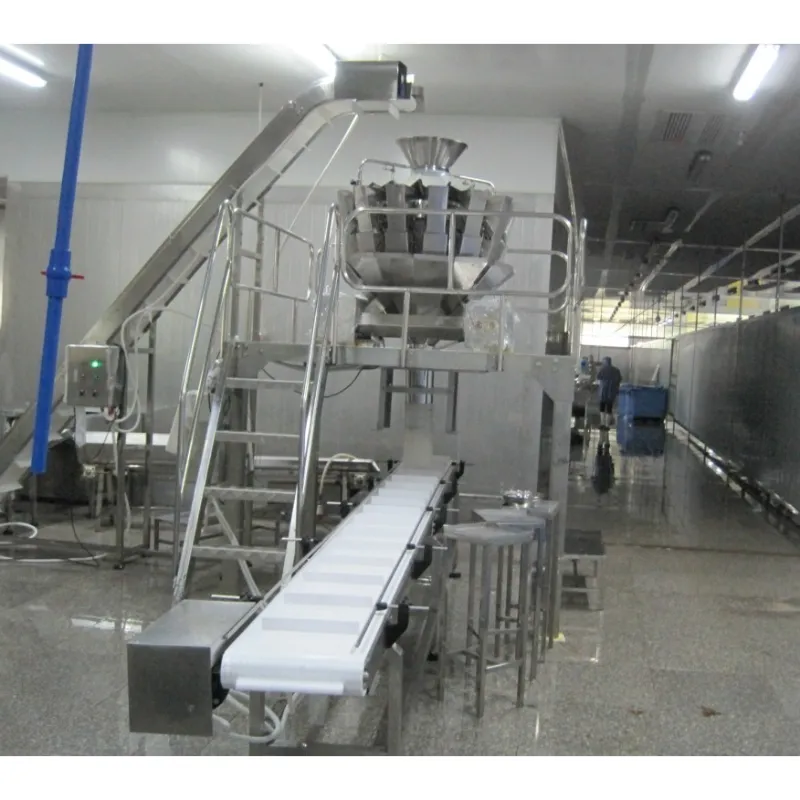

Material Conveying: After being weighed and combined, the food materials are conveyed to the packaging station through the discharging channel. Generally, conveying methods such as belts, screws or vibrations are adopted to ensure that the materials enter the packaging process smoothly and steadily.
Packaging Molding: Under the action of the traction mechanism, the packaging material is unwound from the roll and passes through the bag - making device to form the shape of the packaging bag. After the materials fall into the packaging bag, the heat - sealing or pressure - sealing device seals the packaging bag to complete the packaging process. Some equipment can also achieve functions such as labeling and coding to add product information and marks on the packaging.
MECHANICAL ADVANTAGES
High - precision weighing: The multi - scale combination method can effectively improve the weighing accuracy. Through the collaborative work and data combination of multiple weighing units, the weighing error can be controlled within a very small range. Generally, an accuracy of ±0.5 grams or even higher can be achieved, meeting the strict requirements for food weight accuracy.
High packaging speed: Multiple scales work simultaneously, enabling the rapid weighing and combination of materials, thus greatly increasing the overall packaging speed. It can complete 30 - 120 packaging operations per minute. The specific speed depends on the equipment specifications and the type of food, meeting the large - scale production needs of large - scale food enterprises.
Strong stability: Using high - quality materials and advanced manufacturing processes, the equipment has a sturdy structure, with tight cooperation between various components, ensuring stable and reliable operation. The design of the multi - scale combination also increases the redundancy of the equipment. Even if some weighing units malfunction, other units can continue to work without affecting the overall production.
High flexibility: It can flexibly adjust the combination method of weighing units, packaging specifications, and packaging forms according to the characteristics of different food materials and packaging requirements. By replacing different molds and adjusting parameters, various packaging forms such as three - side sealing, four - side sealing, back - sealing, and special - shaped packaging can be achieved, adapting to different forms of food such as (block - shaped), granular, powdered, and liquid.
High degree of intelligence: Equipped with an advanced PLC control system and human - machine interface, operators can easily set parameters such as weighing range, packaging speed, and packaging form on the touch screen. The equipment also has functions such as automatic detection, fault alarm, and diagnosis. It can monitor the operating status of the equipment in real - time, quickly locate and solve faults, reducing the technical requirements for operators and improving production efficiency and management level.
