Fruit Processing Solutions

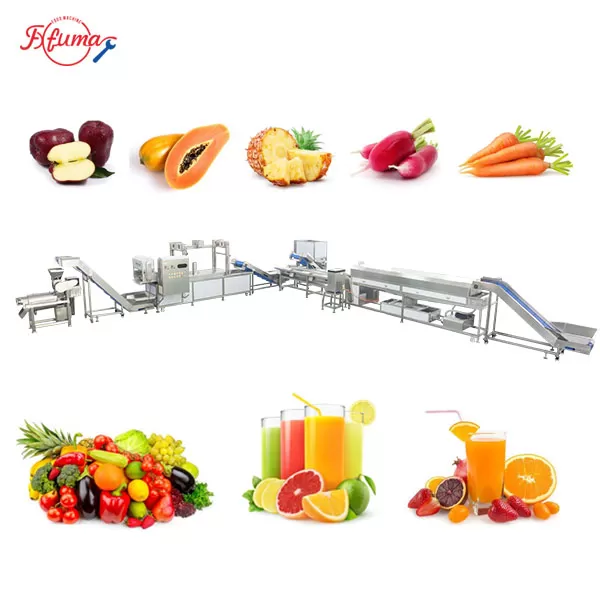

The juice pre-processing line consists of a peeling machine, manual sorting table, washing machine, blanching machine, and screw juicer, designed for efficient juice production from various fruits and vegetables. The streamlined process removes impurities, stabilizes raw material quality, and improves juice yield. All equipment is made of food-grade stainless steel for hygiene and easy cleaning. We provide highly customized solutions based on fruit or vegetable type, processing requirements, and desired production capacity.

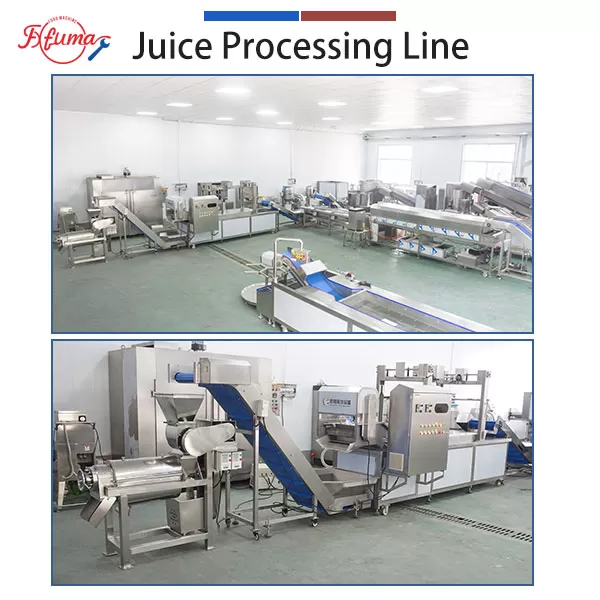

Juice Pre-Processing Line
Features:
✅ Complete Pre-Processing Flow: Covers peeling, sorting, washing, blanching, and juicing stages.
✅ Improved Juice Yield & Quality: Optimizes raw material conditions for stable output.
✅ Food-Grade Stainless Steel: Hygienic, durable, and easy to maintain.
✅ Wide Application: Suitable for a variety of fruits and vegetables, including apples, oranges, carrots, and ginger.
✅ Fully Customizable Line: Tailored to raw material characteristics, capacity, and plant layout.
Specifications:
| Machine | Spray Washer | Peeler | Manual Table | Blancher | Juice Extractor |
| Power | 7kw | 0.25kw | - | 3.7kw | 4kw |
| Voltage | 380V | 220V/380V | 380V | 380V | 380V |
| Size | 4155*1180*1670mm | 550*450*650mm | 3352*1126*922mm | 4000*1325*2065mm | 1860*580*1540mm |
| Capacity | 1.5T-2T/H | 2-4PCS/min | - | 500-1500KG/H | 0.5-5T/h (optional） |
Processing Flow

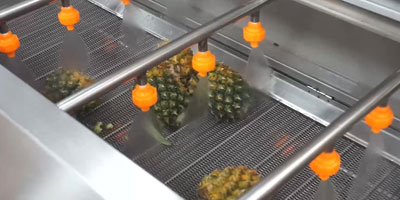

Brush and Spray Washing Machine Effectively remove pesticide residues, bacteria, and dirt from the surface of fruits and vegetables. |  |  |

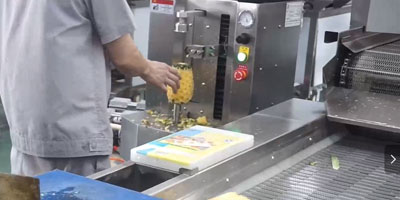

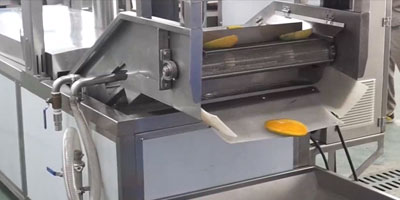

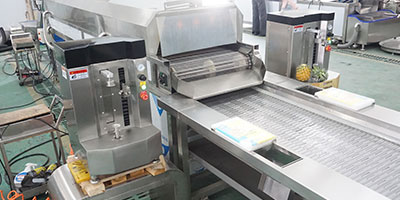

Peeling Machine We can equip suitable peeling machines according to your fruits and vegetables. |  |  |

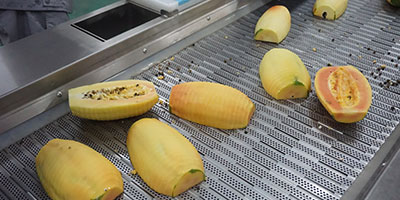

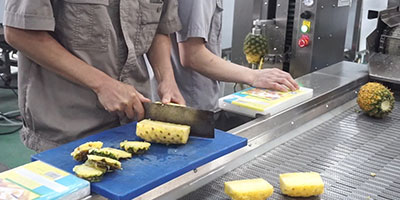

Manual Selection Table The manual sorting table is a workbench used for manually trimming, sorting, and selecting materials. |  |  |

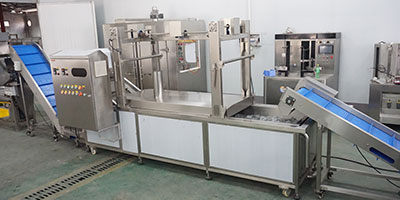

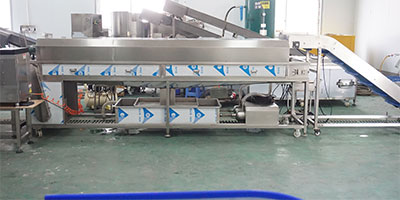

Blanching Machine Heat treatment of materials is carried out through hot water, which can quickly sterilize, inhibit enzymes for color protection, |  |  |

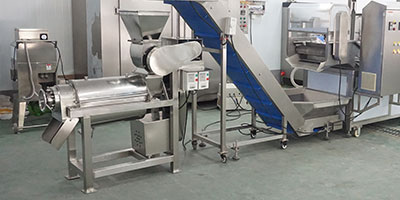

Juice Extraction Machine Under the propulsion and extrusion of the screw, the pressed juice flows into the juice collector at the bottom through the filter screen |  |  |
Video (Contact us for more)
