Cutting & Trimming
★ Full SUS304 body for superior corrosion resistance & hygiene compliance
★ High-power motor ensures smooth, efficient bone & meat cutting
★ Handles beef, pork, poultry, ribs, fish,and frozen meat with ease
★ Slip-resistant base prevents movement during use

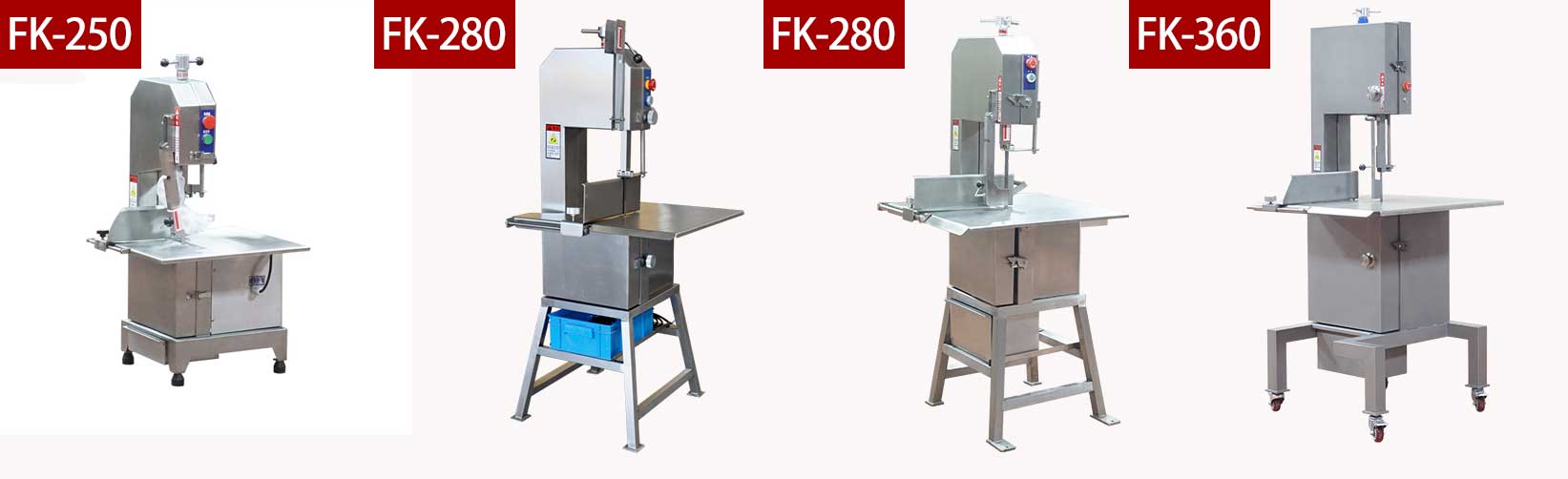

Specifications
| Model | FK-250 | FK-280 | FK-300 | FK-360 |
| Voltage | 220v/380v | 380V/220V | 380V | 380V |
| Power | 0.75kw/1.1kw | 1.1kw | 1.5kw | 2.2kw |
| Size | 500*445*850mm | 600*540*1500mm | 690*600*1550mm | 845*700*1735mm |
| Workbench size | 500*350mm | 600*430mm | 690*600mm | 840*735mm |
| Maximum cutting thickness | Max height:250mm Max width:180mm | 280*200mm | 300*250mm | 360*282mm |
| Saw blade | 1650mm | 1830mm | 2100mm | 2490mm |
Description
Features of bone saws:
1.The machine is crafted from high - grade 304 stainless steel.
2.The driving wheel is made of 304 stainless steel
3.The driving wheel features a direct - connection design. Moreover, the motor can be optionally equipped with a brake function. This brake function enables quick and precise stop of the machine, enhancing operational safety and control, especially during emergency situations.
4.A safety push rod design is incorporated to further enhance work safety. This design allows operators to keep a safe distance from the saw blade while pushing the workpiece, reducing the risk of accidental contact.
5.The overall machine design strictly conforms to the CE standard, demonstrating its compliance with European safety, health, and environmental protection regulations. This ensures that users can trust the machine's quality and safety in various markets.

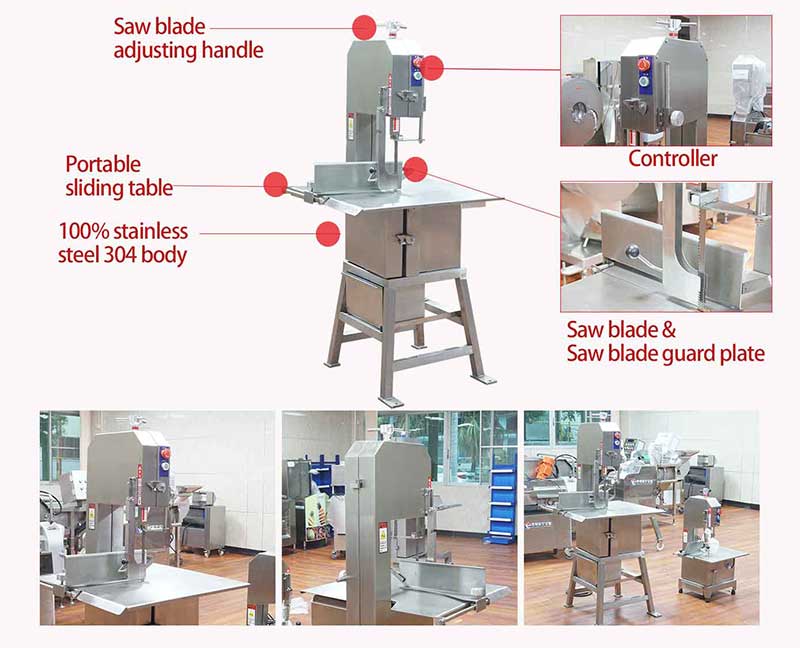

Bone saws details:
1.Adjusting handle
2.Portable sliding plate
3.Saw blade
4.Saw blade guard plate
5.Controller

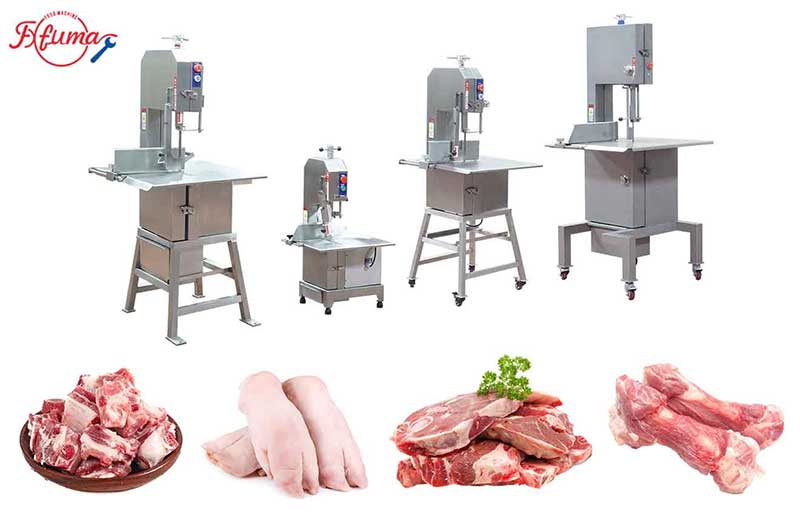

Bone cutter effect:
FXFM bone sawing machine demonstrates excellent versatility in handling various types of food ingredients, and it is especially suitable for processing pig bones, steaks, chickens, ducks, and fish.
When cutting bones with attached meat, bone sawing machine can retain the meat attached to the bones to the greatest extent possible, reducing the loss of raw materials. Through actual testing, compared with the traditional manual cutting method, using a bone sawing machine can reduce the loss of meat scraps by approximately 10% to 15%, saving costs for enterprises.
PRODUCT CLASSIFICATION
Contact Us
+86 400-188-3313
+86 199 2706 5265
+86 758 278 8707
RELATED PRODUCTS
Pig trotters middle splitter Pork knuckle dividing machine
The principle of the pig's trotter splitting machine is that two rotating conveyor belts clamp the pig's trotters by relying on friction and driving them to move toward the bone saw blade. When the pig's trotters reach the position of the bone saw blade, the bone saw blade running at a high speed cuts them.
FKP-36 Horizontal Meat Slicer and Portion Control Machine
Heavy-duty meat slicing machine is designed to provide unparalleled slicing performance and precision. It can be used for cutting beef/pork/fish/bacon and so on. It is suitable for industries such as meat and fish processing food factories, frozen food factories, and so on.
Industrial cooked meat slicer machine
The cooked meat slicer is mainly composed of parts such as the feeding conveyor belt, the rotary cutter, and the control panel. The sliced meat is neatly arranged and can be directly placed on the plate without the need for further arrangement.
XQPJ-160 Continuous Fresh Meat Slicer
The continuous meat slicer is a kind of meat-cutting equipment that can continuously feed and cut meat materials. It can be used for cutting various meat raw materials such as snowflake fatty beef, cooked beef and mutton, chicken breast, sausages, cured meat, bacon, ham, streaky pork, pork, etc.
FC-R580 Electric meat tenderizer machine
This tenderizer features two sets of blades. One presses the meat to loosen its fibers, while the other cuts through the fascia, enhancing the tenderizing effect significantly. With its high - performance design, it's a must - have for hotels, restaurants, and food shops, ensuring consistently tender and delicious meat.

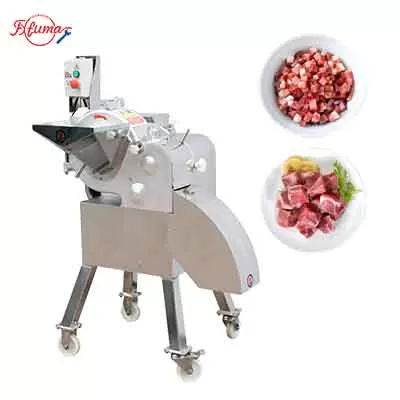

Commercial Meat Cubes Dicer Machine
