Pig trotters half-splitting machine
half-splitting trotters
trotters-half-splitting-machine
Pig trotters half-splitting machine
half-splitting trotters

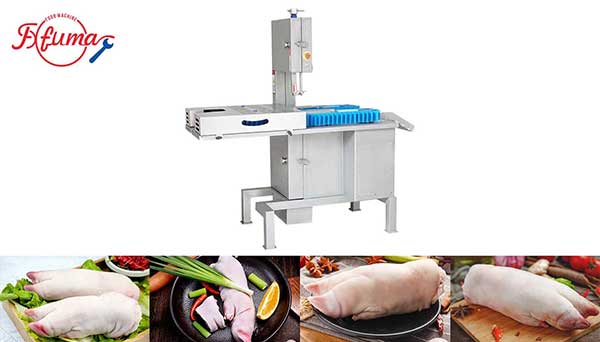

Pig trotters middle splitter Pork knuckle dividing machine

Name:  Pig trotters cutting machine

Model:  SG-350

Size:1400×800×1735mm

Maximum pig trotters' height:  100mm

Maximum pig trotters' width:  30-100mm

The height of the workbench surface:  902mm

Motor power:  1.5kw

Rated rotational speed:  1440r/min

Feeding speed:  0.43m/s

Description

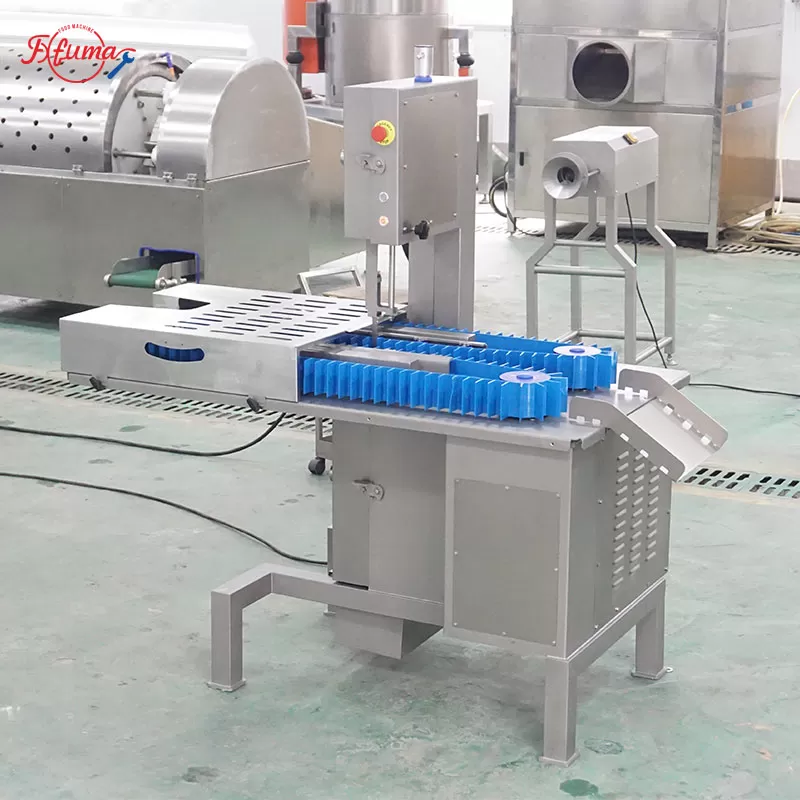

Pig trotters middle splitter Pork knuckle dividing machine

How does the pig's trotter-splitting machine work?

 When the pig's trotters are conveyed to the position of the saw blade, they can be quickly and accurately cut into two halves. The pig's trotters are clamped by relying on the frictional force between the two rotating plastic pulleys. When the motor drives the pulleys to rotate, the pig's trotters will be driven to move forward.


Machine details:

✅  Stainless steel protective cover:  The stainless steel protective cover can effectively block broken bones, meat scraps, and other debris may splashing out.And it prevents workers from coming into contact with dangerous components.

✅  Saw blade:  It can easily penetrate the hard bones and connective tissues of the pig's trotters and quickly and accurately cut the pig's trotters into two halves.

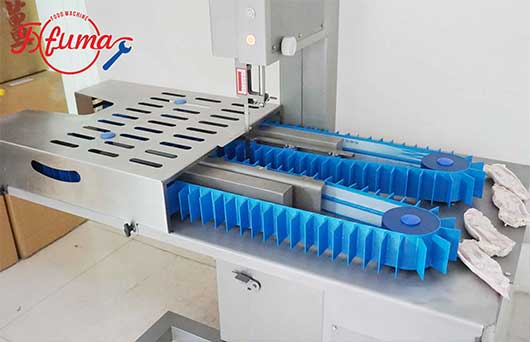

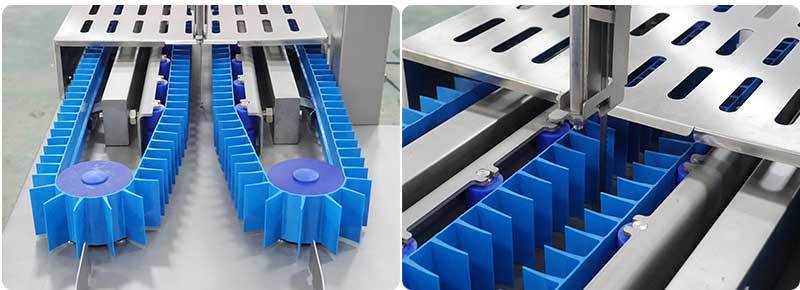

✅  Conveyor: The rotating pulleys are connected to the motor through a plastic conveyor belt. When the motor starts, it drives the pulleys to rotate. This rotation serves as the power source for pushing the pig's trotters to move.

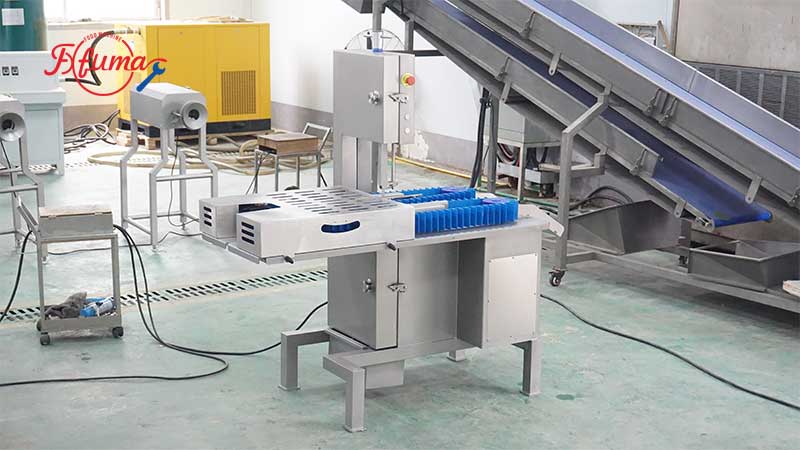

Pig trotters middle splitter Pork knuckle dividing machine

Splitting effect

✅  It has a high cutting precision. The saw blade can accurately and evenly divide the pig's trotters that are moving forward along the predetermined cutting line into two halves.

✅  The cutting surface is smooth. The saw teeth can effectively cut through the bones and muscle tissues of the pig's trotters while minimizing the tearing and damage to the cutting surface as much as possible. The design of the teeth of the saw blade enables the cutting process to be smoother, avoiding excessive squeezing and crushing of the bones, thus reducing the generation of the crap.


Pig trotters middle splitter Pork knuckle dividing machine


Video
