Cutting & Portioning

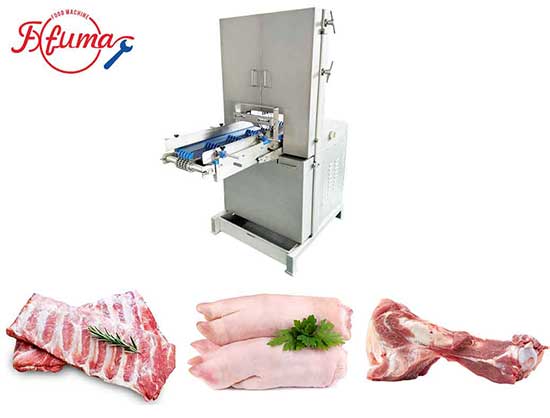

Name: 5-section bone sawing machine
Voltage: 380V
Power: 3.5 KW
Weight: 370 kg
Size: 1020*820*1800mm
Cutting Width: 30-60mm (support customization)
Maximum Cutting Height: 160mm
Saw Blade Linear Velocity: 20m/s
Saw Blade Length: 1985 mm*2; 3355 mm*2
Sharp and Fast Cutting
● It can achieve continuous feeding and sawing.
● It can make 5 cuts at a time.
● The cut is flat, with few chips and low loss.
● The cutting size can be customized, and the customization range is within 30-60mm.
Description
Reliable:
✅ Sturdy and durable material:
The entire frame structure, as well as the main body and outer shell, are all made of thickened stainless steel plates and sealed.
✅ Comprehensive safety protection:
Equipped with stainless steel protective covers to safeguard all moving parts, ensuring the safety of operators.
✅ Convenient conveying design:
The conveying part is separately arranged and installed with slide rails and positioning pins. It can be separated from the main body, making it easy to remove for cleaning and eliminating sanitary dead ends.
✅ Efficient and stable cutting:
Adopting a structure with multiple sets of saw wheels and multiple feeding belts for synchronous material conveying, enabling multiple cuts in one operation, improving efficiency, and ensuring cutting safety and product stability.
✅ Intelligent motor control:
The main motor is controlled by a frequency converter, and the saw wheels start slowly, ensuring the stable operation of the machine and extending the service life of the saw blades.

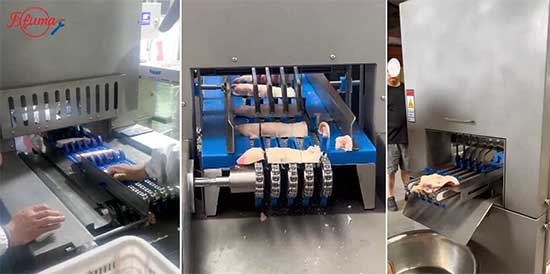

How to operate the bone cutter:
Put the bones on the conveyor belt one by one. Turn on the switch. The cutting device starts to cut the bones continuously.
