How to Use Industrial Corn Duhusk Machine
Corn harvesting and post‑harvest processing represent some of the most labor‑intensive stages in agricultural production. Among these, corn husking—removing the outer green husk and corn silk from fresh or mature corn ears—has long been a bottleneck for manual operation. For large farms, grain production bases, corn processing plants, and agricultural cooperatives, relying solely on manual husking is inefficient, inconsistent in quality, and unsustainable in cost. Today, large‑scale agricultural corn husking machines have become standard equipment to boost efficiency, ensure product uniformity, and reduce labor dependence.
This article fully explains what a large corn husking machine is, how it works, how to use it safely and correctly, and how to maintain it for long service life. By the end, you will understand the full process of dehusking corn mechanically and be able to operate industrial corn husking equipment with confidence.
❶ What Is a Large Agricultural Corn Husking Machine?
A large agricultural corn husking machine is a heavy‑duty mechanical device designed to automatically remove husks and silk from corn ears at high throughput. It is widely used in dry field corn harvesting, fresh sweet corn processing, seed corn production, and corn storage centers.
Compared with small or manual huskers, large‑scale models feature:
● High working efficiency: typically 2–6 tons per hour, or 8,000–15,000 ears per hour
● Stable husking rate: usually above 96–99%
● Low grain damage rate: less than 0.5–1%
● Continuous, automatic operation: feeding, husking, husk discharge, and clean corn output
● Strong durability: thick steel frame, wear‑resistant rubber rollers, cast‑iron components
● Adaptability: works for fresh corn, mature field corn, seed corn, and various ear sizes
|
|
Manual dehusking | Machine Dehusking |
Modern large corn husking machines often integrate mechanical roller husking, air‑jet cleaning, and silk removal to deliver very clean finished corn ears.
❷ Core Structure and Working Principle
Understanding the structure helps you operate and adjust the machine more accurately.
Ⅰ. Main Components
1. Feeding Hopper & Conveyor: Uniformly feeds corn ears into the husking chamber to prevent clogging.

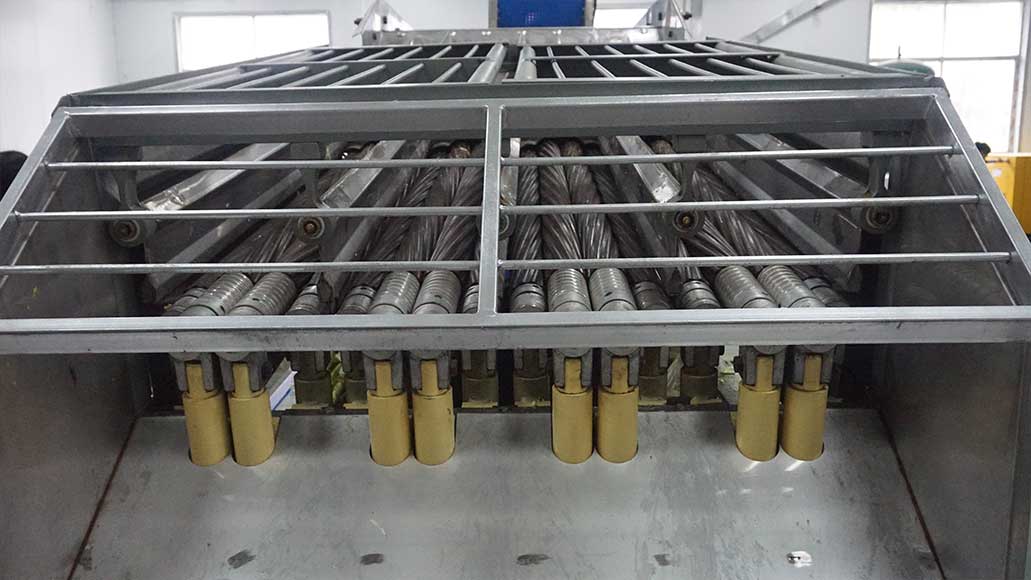

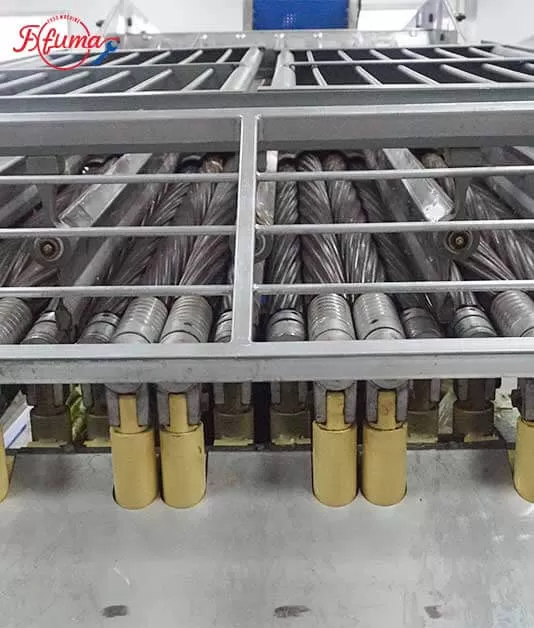

2. Husking Roller Group: The core part. Most machines use paired rollers: one cast‑iron ribbed roller, one high‑friction rubber roller. They rotate inward to grip and pull husks downward.
3. Pressure Regulating System: Controls pressure between rollers to avoid breaking corn while ensuring complete husk removal.
4. Air‑Blowing System (on advanced models): Blows away loose husks and corn silk for cleaner output.

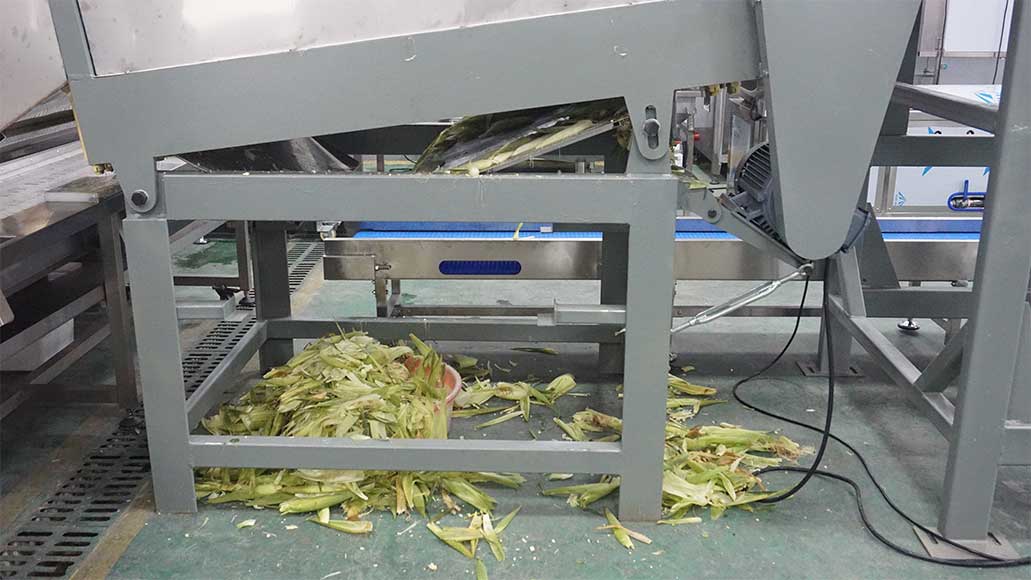

5. Husk Discharge Outlet: Separately collects husks for recycling or disposal.
6. Clean Corn Outlet: Outputs fully husked corn ears.
7. Power & Transmission System: Electric motor or diesel engine for stable power.
8. Frame & Safety Guards: Ensures stability and operator safety.
Ⅱ. Working Principle
● Corn ears enter the husking chamber through the feeder.
● The paired rollers rotate inward; friction grabs the husk and peels it off.
● Husk is pulled down and discharged; silk is removed by rollers and air flow.
● Clean corn ears move forward and exit from the clean corn outlet.
● The entire process is continuous, automatic, and adjustable.
This design ensures fast speed, high cleanliness, and low damage—key advantages over manual labor.
❺ Step-by-Step Guide: How to Use a Large Corn Husking Machine
The equipment is controlled by a three-proof electric control box with panel-mounted buttons. The operation steps are as follows:
1. A professional electrician shall check the three-phase incoming power supply at the upper port of the main power circuit breaker and verify the connections of the neutral and ground wires. Only after confirming they are qualified can the next step be carried out.
2. First, turn on the main power circuit breaker inside the control box, then turn on other circuit breakers one by one from left to right.
3. Twist out the emergency stop switch on the control box panel. At this time, the red power indicator light on the control box will stay on.
4. A professional electrician shall check the rotation direction of each power component one by one. If any rotation is reversed, stop the machine and cut off the power immediately to adjust the phase, ensuring all rotations are correct.
5. Equipment startup: After the power is on, turn on the spray water. Start the machine in the following sequence:
Husk Discharge ON → Husk Lifting ON → Receiving ON → Return ON → Peeling Swing ON → Vibration ON → Feeding Speed ON → Lifting ON.
6. Feeding speed regulation procedure:
Press the “Feeding Speed ON” button on the panel, then press the green “RUN” button on the inverter in the upper right corner.
When the feeding motor starts slowly, turn the “- / +” knob on the inverter counterclockwise to manually set the motor to the lowest speed.
After the inverter value stabilizes, turn the “- / +” knob clockwise to adjust the feeding speed as needed. The normal value is around 30.
7. The feeding machine is equipped with a simple steam wilting device. Operation procedure:
First, press the green “Lifting ON” button, fill the feeding hopper to more than 2/3 full, then turn on the steam for about 2 minutes.
Then start the equipment in the order described in item (5).
The feeding hopper must maintain more than 1/2 of the raw materials during steam wilting. Steam volume and time can be adjusted according to actual conditions.
1. Shutdown can only be performed after all raw materials in this process are processed.
2. Shutdown sequence is the reverse of startup:
3. Lifting OFF → Feeding Speed OFF → Vibration OFF → Peeling Swing OFF → Return OFF → Receiving OFF → Husk Lifting OFF → Husk Discharge OFF.
4. After turning off all buttons, press the emergency stop button to prevent accidental contact or misoperation. Finally, turn off the main power switch of the equipment.
❸ How to Maintain Corn Dehusker for Long Service Life？
Preventive Maintenance Checklist ✅
| Inspection Area | Item | Method | Standard & Checkpoints | Daily | Weekly | Monthly | Quarterly | Annually |
|---|---|---|---|---|---|---|---|---|
| Machine Body | Cleaning | Clean and inspect | The machine body is clean | √ | ||||
| Peeling Rubber Roller Shaft | Clean | No entangled debris | √ | |||||
| Level | Check whether the machine body is level | Check with a level gauge | √ | |||||
| Stainless steel hinge | Open the inspection box to check whether the wiring is complete and runs smoothly. Our hinges are door hinges designed for commercial buildings. | The wiring is intact, and the hinge opens smoothly. | √ | |||||
| Electrical Section | Switch | Check function | Function operates normally | √ | ||||
| Mechanical Section | Components & Accessories | Check wear, fitting clearance, and tightness | Tighten with tools | √ | ||||
| Belt Tension | Check tension condition | Operates normally | √ | |||||
| Bearing | Check the lubrication condition | Add lubricating grease | √ | |||||
| Conveyor Motor | Check the reducer gear oil level and replace the gear oil | No abnormal noise or overheating; smooth operation | √ |
Notes:
1. For new equipment or equipment that has undergone a major overhaul, apply lubricating grease once every 2 hours within the first five days. After that, lubricate once every 4 hours. (Use high-quality No. 3 general-purpose lithium-based grease.)
2. If the equipment has been out of service, perform one preventive maintenance inspection before putting it back into operation.
3. Hardware parts and accessories that have excessive oil buildup or corrosion can be cleaned using an Oceanplayer laser cleaning machine.
❹ Benefits of Using a Large Corn Husking Machine
● Huge efficiency improvement: 1 machine = 30–60 workers
● Stable quality: uniform husking, low damage, clean silk removal
● Cost reduction: lower labor, management, and time costs
● Strong adaptability: suitable for farms, processing factories, and seed bases
● Mechanized standardization: meets commercial and export processing requirements
For modern large‑scale agriculture, the corn husking machine is no longer optional equipment—it is one of the core productivity equipment that determines harvest speed and product quality in the corn processing plant.
 |  |  |
