Sorting & Grading

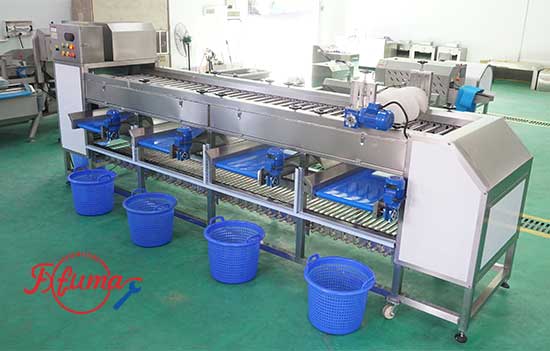

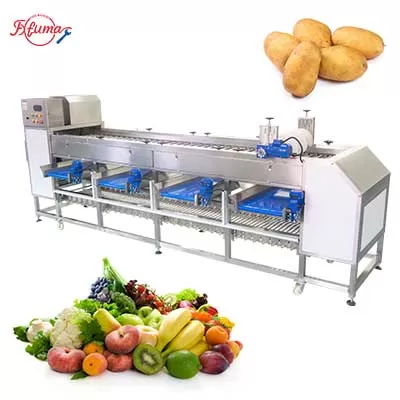

Name: Vegetable sorting and grading machine
Model: OG-606B
Voltage: 220V/380V
Capacity: 2500-3000kg/h
Speed: 10M/min
Size: 4560*1220*1665mm
Grading Range: 35mm、40mm、60mm、61-80mm or above
Package: Wooden case
Product Description
Features:
✅ 3/4/5-grade sorting system with customizable level thresholds
✅ Common Produce Handling- For apples/potatoes/onions/citrus (＞35mm)
✅ Compact & Robust Design - Full steel construction with impact-resistant design
✅ Gentle Handling Tech - <10cm dropping height

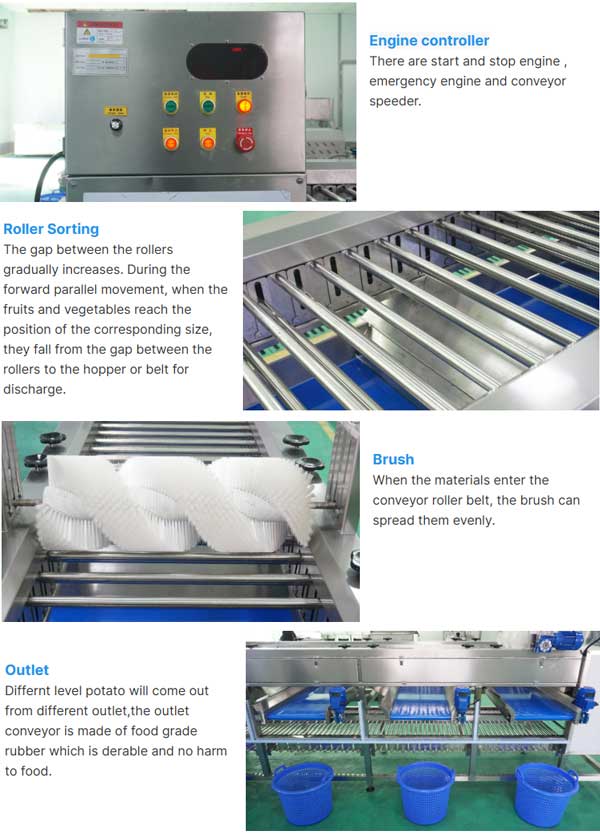

Machine details:
 |  |

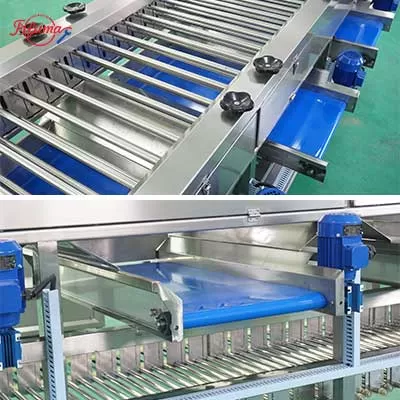

Engine controller There are start, stop, emergency engine and conveyor speeder. | Roller Sorting The gap between the rollersgradually increases. During theforward parallel movement, when thefruits and vegetables reach theposition of the corresponding size, they fall from the gap between therollers to the hopper or belt fordischarge. |
 |  |
Brush When the materials enter theconveyor roller belt, the brush canspread them evenly. | Roller Sorting Different level potatoes will come outfrom different outlets, the outletconveyor is made of food graderubber, which is durable and no harmto food. |
✔ Fresh Produce Packers： Commercial-grade classification for retail packaging
✔ Potato Processing Plants ： Length/diameter ratio control for strip cutting
✔ Organic Certification Centers： Premium Size Grading
✔ Frozen Vegetable Factories： Pre-processing Dimensional Sorting
Sorting Case

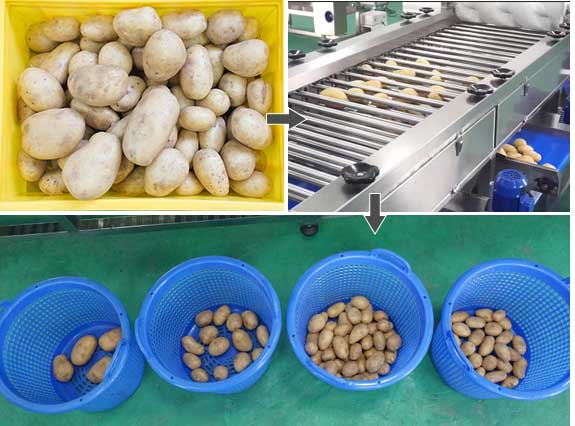

Sorting potatoes into 4 levels：
