Food Packaging
Speedy food checkweigher is a critical quality control process in the food and packaging industries, ensuring products meet precise weight requirements. Our advanced checkweigher systems perform real-time weight verification on moving products, automatically rejecting any items that fall outside preset tolerances.
Why choose our checkweigher?
Reliable:
✅ Military-Grade Load Cell: ±0.1g ultra-high resolution, stable in extreme temps (-15°C~60°C)
✅ Smart Rejection System: 5 selectable modes (air blast/push arm/drop-down/flap/arm)
✅ SUS304 Stainless Steel Body: Corrosion-resistant, FDA-compliant for food/pharma
✅ 80 PCS/Min High Speed: High-speed A/D sampling controller, 0.01s response time
✅ 100 Product Memory Presets: Quick-switch between different weighing setups

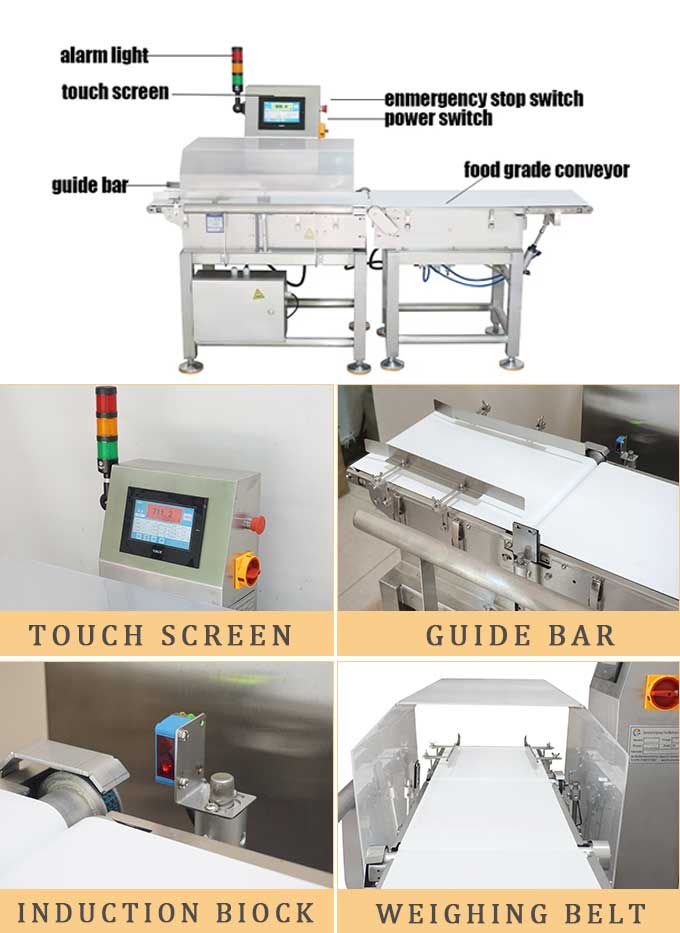

Machine Details:
Ideal for different foods:
● For meat/fish/poultry
● For vegetable/fruit
● For nuts/seeds
● For food-to-go
Specifications
| Power supply: | AC220V±10% 50Hz(60Hz) |
| Rated Power: | 0.25KW |
| Weighing Range: | ≤3000g |
| Accuracy Range: | ±0.5g~±1g |
| Minimum Graduation: | 0.1g |
| Conveyor Speed: | 30-80m/min |
| Maximum Speed: | 80 pcs/min |
| Product Dimensions: | ≤350mm(L)*290mm(W) |
| Conveyor Belt Dimensions: | 450mm(L)*300mm(W) |
| Machine Dimensions: | 1806*855*1180mm |
| Rejection Methods: | Air blast/Pusher arm/Belt drop/Flap gate/Swing arm (selectable) |
| Control System: | High-speed A/D sampling controller |
| Preset Product Memory: | 100 groups |
| Operation Direction: | Left in/Right out (when facing machine) |
| External Air Supply: | 0.6-1Mpa |
| Air Connection: | φ8mm |
| Operating Environment: | Temperature: -15℃~60℃, Humidity: 30%~95% |
| Machine Material: | SUS304 Stainless Steel |
